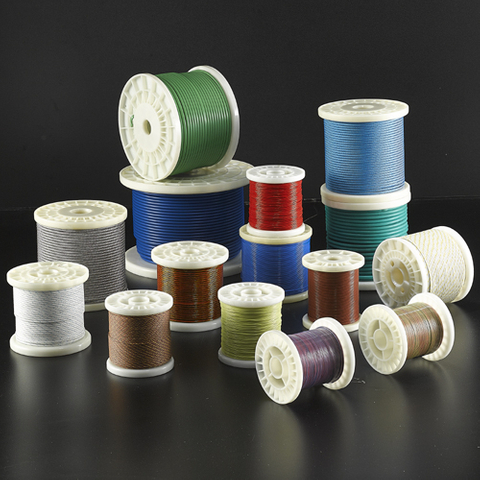

. Calibration: Type K/KX, J/JX, T/TX, E/EX, N/NX, R/S . Wire type: Solid or stranded . Number of paisr: Single . Insulation: FEP . With tinned copper drain wire . Inner shield: Stainless steel . Construction: Parallel conductor . Tolerance: Standard limits of error . Max. operating temperature: 200°C . Color code: ANSI

. Calibration: Type KX, JX, EX, TX, NX and RX, SX . Wire type: Solid or stranded . Number of pairs: Single . Conductor Insulation: PFA . Inner shield: Stainless steel . Jacket insulation: Silicone rubber . Construction: Parallel conductor . Tolerance: Standard limits of error and special limits of error . Max. operating temperature: 180°C . Color code: ANSI, IEC, JIS, DIN

. Calibration: Type KX, JX, EX, TX, NX and RX, SX . Wire type: Solid or stranded . Number of pairs: Single . Conductor insulation: Silicone rubber . Jacket insulation: Silicone rubber . Outer shield: Stainless steel . Construction: Parallel conductor . Tolerance: Standard limits of error and special limits of error . Max. operating temperature: 180°C . Color code: ANSI, IEC, JIS, DIN

. Calibration: Type KX, JX, EX, TX, NX and RX, SX . Wire type: Solid or stranded . Number of pairs: Single . Insulation: Silicone rubber . Construction: Parallel conductor . Tolerance: Standard limits of error and special limits of error . Max. operating temperature: 180°C . Color code: ANSI, IEC, JIS, DIN

. Fused kapton tape applied to conductor and jacket . Thermocouple extension wire type JX, KX, TX, EX, NX . Kapton wire is not color-coded . Excellent moisture & abrasion resistance . High dielectric strength

. Fused kapton tape applied to conductor and jacket . Thermocouple wire type J, K, T, E, N . Thermocouple extension wire type JX, KX, TX, EX, NX . Kapton wire is not color-coded . Excellent moisture & abrasion resistance . High dielectric strength

. Calibration: Type KX, JX, EX, TX, NX and RX/SX . Conductor: Solid or stranded . Number of pairs: Single . Insulation: PFA . Jacket: PFA . Conductor configuration: Twisted . Tolerance: Standard limits of error and special limits of error . Max. operating temperature: 260°C . Color code: ANSI, IEC, JIS, DIN

. Conductors: Type KX, JX, EX, TX, NX and RX, SX . Wire type: Solid or stranded . Number of pairs: Single . Insulation: PFA . Conductor configuration: Parallel . Tolerance: Standard limits of error or special limits of error . Max. operating temperature: 260°C . Color code: ANSI, IEC, JIS, DIN

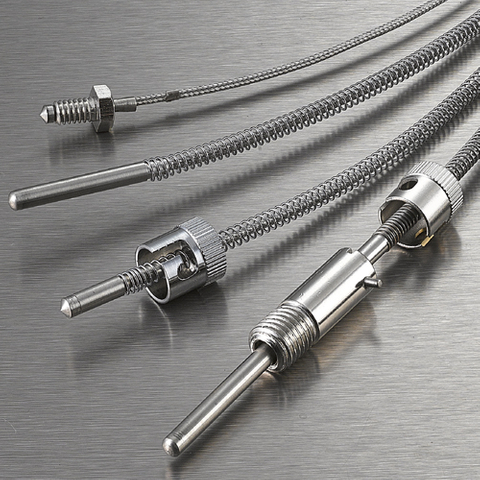

. Epoxy sealed “cold end”, strip lead wire length 10mm . Calibration : K, J, T, E, and N . Sheath material: SS304, SS310, SS316 and INC600 . Sheath diameter: 1.0mm, 1.6mm, 3.2mm, 4.8mm and 6.4mm . Hot junction: grounded, ungrounded and exposed . Common length: 110+10mm, 160+10mm, 360+10mm, 510+10mm, 1010+10mm, 2010+10mm

. Sheath material: Stainless steel SS321 . MI heating cable with 1 Conductor. . All cables are tested in our test lab. . All our mineral insulated heating cables are delivered with a certificate of conformity. . Highly robust and mechanically stable . High output per meter . High operating temperatures up to 700 °C . High chemical resistance . Hermetically sealed metal sheath

. Sheath material: Stainless steel SS321 . MI heating cable with 2 Conductors. . All cables are tested in our test lab. . All our mineral insulated heating cables are delivered with a certificate of conformity. . Highly robust and mechanically stable . High output per meter . High operating temperatures up to 700 °C . High chemical resistance . Hermetically sealed metal sheath

. All cables are tested in our test lab. . All our mineral insulated heating cables are delivered with a certificate of conformity. . Highly robust and mechanically stable . Moisture proof . Non-flammable . High output per meter . High operating temperatures up to 700 °C . High chemical resistance . Hermetically sealed metal sheath

.Highly robust and mechanically stable .Moisture proof .Non-flammable .High output per meter .High operating temperatures up to 700 °C .High chemical resistance .Hermetically sealed metal sheath

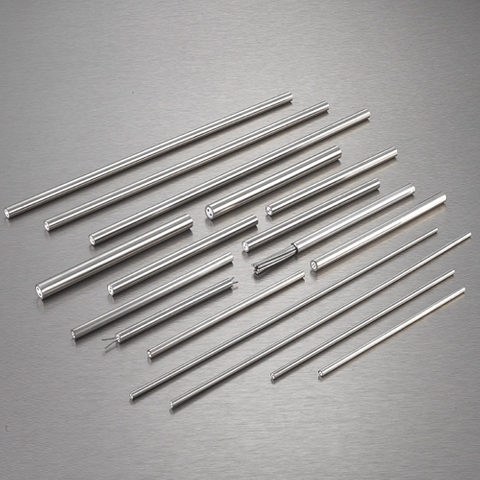

Mineral Insulated RTD Cable (MI RTD Cable) Calibration: RTD (PT00) No. of Conductor: 2 cores Sheath OD: 3.0, 3.2, 4.0, 4.8, 5.0, 6.0, 6.4, 8.0 Sheath material: SS304, SS321, SS316 Available in copper or nickel conductors

Mineral Insulated RTD Cable (MI RTD Cable) Calibration: RTD (PT00) No. of Conductor: 3 cores Sheath OD: 3.0, 3.2, 4.0, 4.8, 5.0, 6.0, 6.4, 8.0 Sheath material: SS304, SS321, SS316 Available in copper or nickel conductors

. Mineral Insulated RTD Cable (MI RTD Cable) . Calibration: RTD (PT00) . No. of Conductor: 4 cores . Sheath OD: 3.0, 3.2, 4.0, 4.8, 5.0, 6.0, 6.4, 8.0 . Sheath material: SS304, SS321, SS316 . Available in copper or nickel conductors . 99.4% high purity Mgo insulation . Wider spacing available

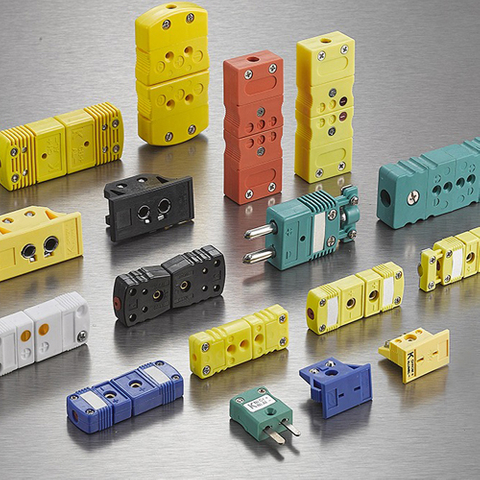

. Model No. ZZ-S09C . Thermocouple calibration type K, J, E, T, N, R/S, B, C . With cable clamp cap . Standard round pin male . Universal female accepts standard or mini male TC connectors . The max temperature is up to 220°C . The material of body: Thermoplastic . Color coded for ANSI, IEC, JIS

. Miniature connector with plastic clamp . Model No.: ZZ-M09C . Thermocouple calibration type K, J, E, T, N, R/S . Male with flat pins . The max temperature is up to 220°C . The material of body: Thermoplastic . Color coded for ANSI, IEC, JIS . Accepts wires from 0.2 mm to 0.80 mm . Maximum cable diameter 4.5 mm

. 3 Prong Mini Flat Pin Thermocouple Connector With Metal Clamp . Model No.: ZZ-M10C . Thermocouple calibration type K, J, RTD . 3 prong flat pins . The max temperature is up to 180°C . The material of body: Thermoplastic . Color coded for ANSI

. Model No.: ZZ-S11C . Thermocouple calibration type K, J, E, T, N, R/S . Standard round pin male . The max temperature is to 220°C . The material of body: Thermoplastic . Color coded for ANSI, IEC, JIS . Accepts wires from 0.2 mm to 2.0 mm. . Maximum cable diameter 8.0 mm.

. Miniature thermocouple connector with plastic cable clamp . Model No.: ZZ-M02C . Available in type K, J, E, T, N, R/S . Male with flat pins . The max temperature is to up 120°C . The material of body: Thermoplastic . Accepts wires from 0.2 mm to 0.80 mm . Maximum cable diameter 4.5 mm

. Standard Size 3 Prong Round Pin Connector . Model No.: ZZ-S15 . Thermocouple calibration type K, J and RTD . Connector for thermocouple, RTD and 3 wire thermistor . The max temperature is up to 220°C . The material of body: Thermoplastic . ANSI color code is available

. 3 Prong mini flat pin connector . Model No.: ZZ-M10 . Thermocouple calibration type K, J and RTD . Connector for thermocouple RTD and 3 wire thermistor . The max temperature is up to 180°C . The material of body: Thermoplastic . ANSI color code is available

. Model No.: ZZ-S11 . Thermocouple calibration type: K, J, E, T, N, R/S . Standard round pin male . The max temperature up to 220°C . The material of body: Thermoplastic . Available in ANSI, IEC, JIS . Accepts wires from 0.2 mm to 2.0 mm. . Maximum cable diameter 8.0 mm.

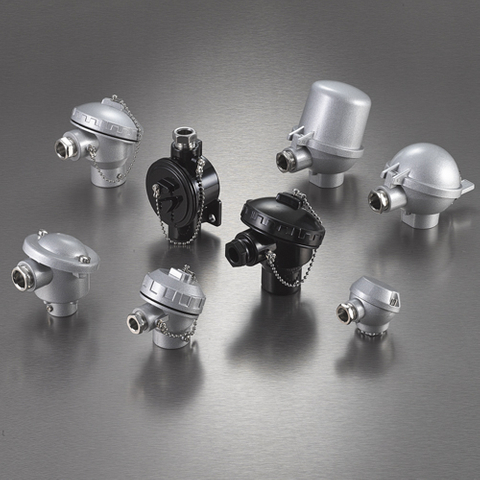

Material: Alloy-Aluminum Protection tube entry: PF1/2", BSP1/2", NPT1/2", M20*1, M22*1.5, G1/2" Extension wire entry: M20*1.5, M22*1.5, G1/2" Material of terminal block: Ceramic, Bakelite Form of terminal block: 2 poles, 3 poles, 4 poles and 6 poles Available Color: Silvery, Yellow, Red, Blue, Purple, Black or others Approval IEC529: IP65

Material: Alloy-Aluminum Protection tube entry: M12*1, M16*1, M20*1, M22*1, M24*1, M27*1, M30*1, G1/2" Extension wire entry: M20*1.5 Material of terminal block: Ceramic Form of terminal block: 2 poles, 3 poles, 4 poles and 6 poles Available Color: Silvery, Yellow, Red, Blue, Purple, Black or others Approval IEC529: IP65

Material: Alloy-Aluminum Protection tube entry: M12*1, M16*1, M20*1, M22*1, M24*1, M27*1, M30*1, G1/2" Extension wire entry: M20*1.5 Material of terminal block: Ceramic Form of terminal block: 2 poles, 3 poles, 4 poles and 6 poles Available Color: Silvery, Yellow, Red, Blue, Purple, Black or others Approval IEC529: IP65

Material: Alloy-Aluminum, Weight 164g Protection Tube Entry: PF1/2", NPT1/2", BSP1/2", M20x1.5 Extension Wire Entry: PF1/2", NPT1/2", BSP1/2", M20x1.5 Material of Terminal Block: Ceramic Form of Terminal Block: 2P-C, 3P-C, 4P-C, 6P-C Available color: Silver, Red, Blue Approval IEC529: IP65

Material: Alloy-Aluminum Protection tube entry: PF1/2" Material of terminal block: Ceramic, Bakelite Form of terminal block: 2 poles Available Color: Silver Approval IEC529: IP65

Material: Alloy-Aluminum Protection tube entry: M10*1 Extension wire entry: M14*1.5 Material of terminal block: Ceramic Form of terminal block: 2 poles, 3 poles and 4 poles Available Color: Silvery, Yellow, Red, Blue, Purple, black or others Approval IEC529: IP65

Material: Alloy-Aluminum Protection tube entry: PF1/2", NPT1/2", BSP1/2", M20*1.5 Extension wire entry: PF1/2", NPT1/2", BSP1/2", M20*1.5 Material of terminal block: Ceramic Form of terminal block: 2 poles, 3 poles, 4 poles and 6 poles Available Color: Silvery, Yellow, Red, Blue, Purple, Black or others Approval IEC529: IP65

Material: Alloy-Aluminum Protection tube entry: PF1/2", PF3/4", NPT1/2", NPT3/4", BSP1/2", M20*1.5 Extension wire entry: PF1/2", PF3/4", NPT1/2", BSP1/2", M20*1.5 Material of terminal block: Ceramic Form of terminal block: 2 poles, 3 poles, 4 poles and 6 poles Available Color: Silvery, Yellow, Red, Blue, Purple, Black or others Approval IEC529: IP65
