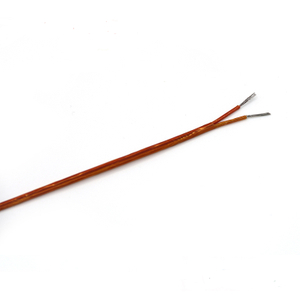

Stainless steel braid Kapton insulated twisted pair thermocouple extension wire--Duplex pair

. Fused kapton tape applied to conductor and jacket
. Thermocouple extension wire type JX, KX, TX, EX, NX
. Kapton wire is not color-coded
. Excellent moisture & abrasion resistance
. High dielectric strength
Quantity:

Feature

Stainless steel braid Kapton insulated twisted pair thermocouple extension wire--Duplex pair

. Continuous use up to 260°C
. Short term use up to 315°C
. Flame retardant
. High dielectric strength

KPT-KPT Physical Properties
Characteristics Insulation Jacket
Abrasion Resistance Excellent Excellent
Cut Through Resistance Good Good
Moisture Resistance Excellent Excellent
Solvent Resistance Good Good
Service Temperature

260°C continuous

315°C single

260°C continuous

315°C single

Flame Test Good Good

Specification

Item Specification
Calibration Type JX Type KX Type TX Type EX Type NX
+ Iron
- Constantan
+ Chromel
- Alumel
+ Copper
- Constantan
+ Chromel
- Constantan
+ Nirosil
- Nisil
Wire size 20, 24, 26, 28,AWG
Wire type Solid or Stranded
Construction Twisted conductors
Number of pair Double
Insulation KAPTON
Jacket KAPTON
Tolerance Standard limits of error or special limits of error
Max. Operating temperature 260°C
Color code Not color-coded
Packing Roll or spool (As required)

Order Code

Model explanation

 QQ截图20181116105100


1  Calibration: KX, JX, TX, EX, NX
2  Insulation: KAPTON
3  Outer shield: Stainless steel
4  "D" means "Double"
4  Wire size: 20, 24, 26, 28AWG
5  "S" means "Stranded"; "Blank" means "Solid"

Order code:

Type

Wire
Size(AWG)

Diameter (mm)

Conductor

Calibration

Type J

Type K

Type T

Type E

Extension wire

20

1/0.80

Solid

JX-KPT-SSB-D-20

KX-KPT-SSB-D-20

TX-KPT-SSB-D-20

EX-KPT-SSB-D-20

20 7/28

7/0.30

Stranded

JX-KPT-SSB-D-20S

KX-KPT-SSB-D-20S

TX-KPT-SSB-D-20S

EX-KPT-SSB-D-20S

24

1/0.50

Solid

JX-KPT-SSB-D-24

KX-KPT-SSB-D-24

TX-KPT-SSB-D-24

EX-KPT-SSB-D-24

24 7/32

7/0.20

Stranded

JX-KPT-SSB-D-24S

KX-KPT-SSB-D-24S

TX-KPT-SSB-D-24S

EX-KPT-SSB-D-24S

26 1/0.40 Solid JX-KPT-SSB-D-26 KX-KPT-SSB-D-26 TX-KPT-SSB-D-26 EX-KPT-SSB-D-26
26 7/34 7/0.16 Stranded JX-KPT-SSB-D-26S KX-KPT-SSB-D-26S TX-KPT-SSB-D-26S EX-KPT-SSB-D-26S
28 1/0.32 Solid JX-KPT-SSB-D-28 KX-KPT-SSB-D-28 TX-KPT-SSB-D-28 EX-KPT-SSB-D-28
28 7/36 7/0.13 Stranded JX-KPT-SSB-D-28S KX-KPT-SSB-D-28S TX-KPT-SSB-D-28S EX-KPT-SSB-D-28S



Note: The products referenced above represent the most popular constructions. Other constructions can be manufactured to meet individual specification and application requirements.


Technical Data

Color Code & Initial Calibration Tolerance for Thermocouple Extension Wire:

Thermocouple extension type

ANSI Color Code

Initial Calibration Tolerances

Wire Alloys

Calibration

Conductor (+/-)

Jacket

Temperature Range

Standard
Limits

Special
Limits

Iron (+) vs.  Constantan(-)

JX

Non color-coded

Non color-coded

0°C to +200°C

± 2.2°C

± 1.1°C

Chromel (+) vs.  Alumel (-)

KX

Non color-coded

Non color-coded

0°C to +200°C

± 2.2°C

± 1.1°C

Copper(+) vs. Constantan(-)

TX

Non color-coded

Non color-coded

-60°C to +100°C

± 1.1°C

± 0.5°C

Chromel(+) vs. Constantan(-)

EX

Non color-coded

Non color-coded

0°C to +200°C

± 1.7°C

± 1.1°C

Nirosil (+) vs. Nisil (-) NX Non color-coded Non color-coded 0°C to +200°C ± 2.2°C ± 1.1°C
