New Type Standard Size Round Pin Thermocouple Connector Most Pupular TC Connector

. Model No.: ZZ-S09N
. Thermocouple calibration type: K, J, E, T, N, R/S
. Standard round pin male
. Thermoplastic body temperature rating: 220°C
. ANSI code color is available
. Accepts wires from 0.2 mm to 2.0 mm.
. Maximum cable diameter 8.0 mm.
Quantity:
  • ZZ-S09N

  • ZONZEN

  • 853690000

Product Description

New Type Standard Size Round Pin Thermocouple Connector Most Pupular TC Connector

Specification

Order code Description Calibration Material of Pins Material of Body Max. temperature Color
(ANSI)
Positive (+) Negtive (-)
ZZ-S09N-K Male+Female Type K NiCr NiAl Thermoplastic 220 Yellow
ZZ-S09N-K-M Male Type K NiCr NiAl Thermoplastic 220 Yellow
ZZ-S09N-K-F Female Type K NiCr NiAl Thermoplastic 220 Yellow
ZZ-S09N-J Male+Female Type J Fe CuNi Thermoplastic 220 Black
ZZ-S09N-J-M Male Type J Fe CuNi Thermoplastic 220 Black
ZZ-S09N-J-F Female Type J Fe CuNi Thermoplastic 220 Black
ZZ-S09N-T Male+Female Type T Cu CuNi Thermoplastic 220 Blue
ZZ-S09N-T-M Male Type T Cu CuNi Thermoplastic 220 Blue
ZZ-S09N-T-F Female Type T Cu CuNi Thermoplastic 220 Blue
ZZ-S09N-E Male+Female Type E NiCr CuNi Thermoplastic 220 Violet
ZZ-S09N-E-M Male Type E NiCr CuNi Thermoplastic 220 Violet
ZZ-S09N-E-F Female Type E NiCr CuNi Thermoplastic 220 Violet
ZZ-S09N-N Male+Female Type N NiCrSi NiSiMg Thermoplastic 220 Orange
ZZ-S09N-N-M Male Type N NiCrSi NiSiMg Thermoplastic 220 Orange
ZZ-S09N-N-F Female Type N NiCrSi NiSiMg Thermoplastic 220 Orange
ZZ-S09N-S Male+Female Type S Cu CuNi Thermoplastic 220 Green
ZZ-S09N-S-M Male Type S Cu CuNi Thermoplastic 220 Green
ZZ-S09N-S-F Female Type S Cu CuNi Thermoplastic 220 Green


Dimension
S09-DRAWING

Product Pictures

Type K

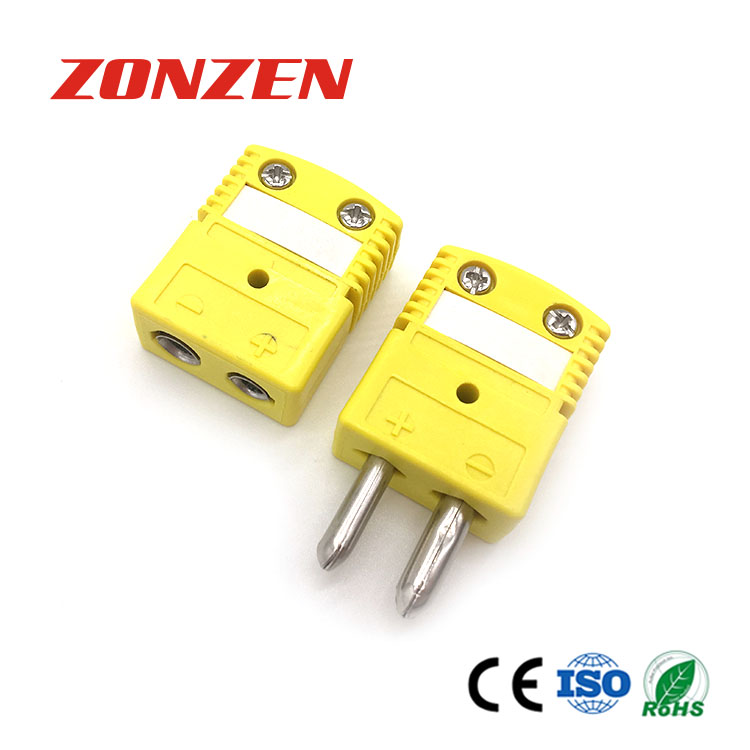

ZZ-S09-KC ZZ-S09-KC (反面,空心,ANSI)
Type J

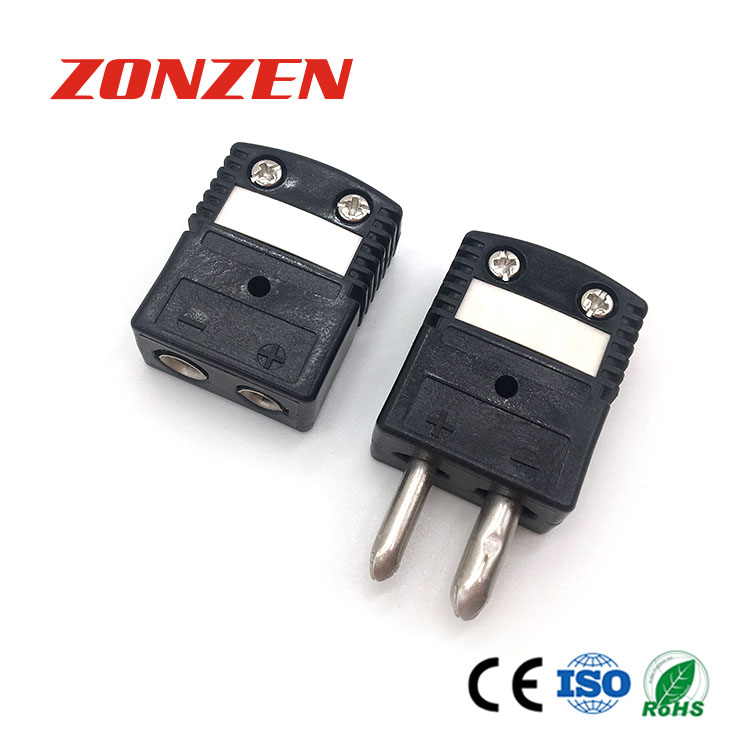

ZZ-S09-JC (正面,空心) ZZ-S09-JC (反面,空心)
Type T
ZZ-S09-T (正面,空心) ZZ-S09-T (反面,空心)
