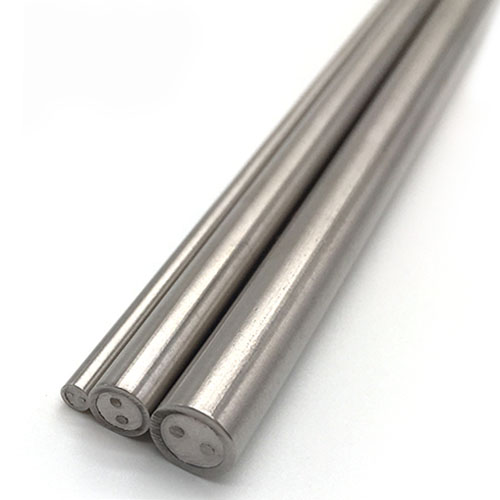

Simplex Mineral Insulated Thermocouple Cable (MI Cable) with Stainless steel SS310

. Simplex MI Cable, 2 conductors
. Differnet sheath diameters are available
. MI cables with an extremely small outer diameter 0.25mm
. Sheath material: SS310
. High purity ≥99.6% MgO insulation mineral powder
. Internal conductors: Thermocouple J, K, T, E, N
. MI cables with high reliability and high heat resistance
. MI cables withstands vibration and pressures
Quantity:

Technical Data


Sheath Material of SS310
Applications
: Nuclear power plants, crude oil and petrochemistry, furnace construction, heat exchangers, air heaters, cement and brick kilns, glass works, jet engine afterburner and gas inlet temperature measuring applications.
Max. continuous temperature: 1150°C
Heat resistance: Good resistance to oxidation in intermittent service in air at temperatures up to 1150°C in continuous service. Good resistance to thermal fatigue and cyclic heating. Widely used where sulphur dioxide gas is encountered at elevated temperatures. Continuous use in 425 to 850°C range not recommended but often performs well in temperatures above and below this range.
Corrosion resistance: Excellent resistance at normal temperatures and when in high temperature service exhibits good resistance to oxidation and carburizing atmospheres up to 900 °C. Resists fuming nitric acid at room temperature and fused nitrates up to 420°C.
Welding: Good characteristics suited to all standard welding methods.

Chemical Composition of Stainless Steel Sheath



Sheath Material



Chemical Composition

Max. Temp. In Air Melting Temp.
C Si Mn P S Cr Ni

Others

SS310 ≤0.08 ≤1.00

≤2.00

≤0.035 ≤0.03 16-19

11-14

Mo: 1.8-2.5

925℃

1370℃


Sheath Specification
 Outside sheath diameter   ±0.05mm or ±1% of nominal diameter
 Wall thickness  10% of sheath diameter as a minimum
 Wire diameter  15% of sheath diameter as a minimum for 2 wires,
 12% of sheath diameter as a minimum for 4 wires,
 9% of sheath diameter as a minimum for 6 wires.
 Calibration  To meet special limits of error as defined in ASTM-E230 and IEC 60584-2
 MgO purity  99.6% MgO powder

 Sheath material

 Sheath OD (mm)      Wall Thickness (mm)

 Wire Dia. (mm)

 Coil Length(m)
         SS310  0.5  0.05-0.10  0.08-0.12

 200

 1.0

 0.10-0.20      0.15-0.20      200
 1.5

 0.15-0.25

 0.23-0.30

 200

 1.6      0.16-0.26     0.26-0.36     200
 2.0

 0.20-0.35

 0.30-0.50

 100

 2.4

 0.24-0.36

 0.36-0.41

 100

 3.0

 0.30-0.48

 0.45-0.60

 100

 3.2

 0.32-0.58

 0.48-0.68

 100

 4.0

 0.40-0.62

 0.60-0.70       70

 4.5

 0.45-0.68

 0.68-0.77

 70

 4.8

 0.48-0.83

 0.72-0.85

 70

 6.0

 0.60-1.08

 0.90-1.10

 50

 6.4

 0.64-1.15

 0.92-1.12

 40

 8.0

 0.80-1.44

 1.20-1.40

 30

 9.5

 0.95-1.43

 1.43-1.62

 20

 10.0

1.00-1.50

 1.50-1.70

 20

 10.8

 1.08-1.62       1.62-1.84

 20

 12.7

 1.27-1.90

 1.91-2.05

 10


Calibration Tolerance

  Calibration

 Tolerance

 Special Limits (Grade I)

 Standard Limits (Grade II)      Temperature Range (℃)

 K (Chromel vs Alumel)

 ±1.5°C or ±0.4%   ±2.5°C or ±0.75%  -40~1000

 J (Iron vs Constantan)

 -40~750

 E (Chromel vs Constantan)

 -40~800

 T (Copper vs Constantan)

 ±1°C or ±0.75%  -40~350


Order Code


Order Code of Simplex Mineral Insulated Thermocouple Cable (MI Cable) with Stainless steel SS310:

 Calibration

Sheath OD (mm)

Sheath Material

 Type K

 Type J

 Type E

 Type T

 MIC-K-0.5-SS310  MIC-J-0.5-SS310

 MIC-E-0.5-SS310

 MIC-T-0.5-SS310

 0.5

 SS310

 MIC-K-1.0-SS310  MIC-J-1.0-SS310  MIC-E-1.0-SS310  MIC-T-1.0-SS310  1.0   SS310

 MIC-K-1.5-SS310

 MIC-J-1.5-SS310

 MIC-E-1.5-SS310

 MIC-T-1.5-SS310

1.5

 SS310

 MIC-K-1.6-SS310

 MIC-J-1.6-SS310

 MIC-E-1.6-SS310

 MIC-T-1.6-SS310

 1.6

 SS310
 MIC-K-2.0-SS310  MIC-J-2.0-SS310

 MIC-E-2.0-SS310

 MIC-T-2.0-SS310

 2.0

 SS310

 MIC-K-2.4-SS310  MIC-J-2.4-SS310  MIC-E-2.4-SS310  MIC-T-2.4-SS310  2.4  SS310
 MIC-K-3.0-SS310  MIC-J-3.0-SS310  MIC-E-3.0-SS310  MIC-T-3.0-SS310  3.0  SS310
 MIC-K-3.2-SS310  MIC-J-3.2-SS310  MIC-E-3.2-SS310  MIC-T-3.2-SS310  3.2  SS310
 MIC-K-4.0-SS310  MIC-J-4.0-SS310  MIC-E-4.0-SS310  MIC-T-4.0-SS310  4.0  SS310
 MIC-K-4.5-SS310  MIC-J-4.5-SS310  MIC-E-4.5-SS310  MIC-T-4.5-SS310  4.5  SS310
 MIC-K-4.8-SS310  MIC-J-4.8-SS310  MIC-E-4.8-SS310  MIC-T-4.8-SS310  4.8  SS310
 MIC-K-5.0-SS310  MIC-J-5.0-SS310  MIC-E-5.0-SS310  MIC-T-5.0-SS310  5.0  SS310
 MIC-K-6.0-SS310  MIC-J-6.0-SS310  MIC-E-6.0-SS310  MIC-T-6.0-SS310  6.0  SS310
 MIC-K-6.4-SS310  MIC-J-6.4-SS310  MIC-E-6.4-SS310  MIC-T-6.4-SS310  6.4  SS310
 MIC-K-8.0-SS310  MIC-J-8.0-SS310  MIC-E-8.0-SS310  MIC-T-8.0-SS310  8.0  SS310
 MIC-K-9.5-SS310  MIC-J-9.5-SS310  MIC-E-9.5-SS310  MIC-T-9.5-SS310  9.5  SS310
 MIC-K-10.0-SS310  MIC-J-10.0-SS310  MIC-E-10.0-SS310  MIC-T-10.0-SS310  10.0  SS310
 MIC-K-10.8-SS310  MIC-J-10.8-SS310  MIC-E-10.8-SS310  MIC-T-10.8-SS310  10.8  SS310
 MIC-K-12.7-SS310  MIC-J-12.7-SS310  MIC-E-12.7-SS310  MIC-T-12.7-SS310  12.7  SS310

Order Example:
 1. MIC-K-0.5-SS310, it means you order MI thermocouple cable is Simplex, type K, sheath dia: 0.5mm, sheath material: SS310.
 2. If you order MI thermocouple cable is Duplex, please change "MIC" to "MICD", it means "MICD-K-0.5-SS310".
 3. If you order MI thermocouple cable is Triple, please change "MIC" to "MICT", it means "MICT-K-0.5-SS310".
 4. If you order MI thermcouple cable is special limits, please change calibration "K" to "KK", it means "MIC-KK-0.5-SS310".
 5. For other calibration such as type N is also available.
