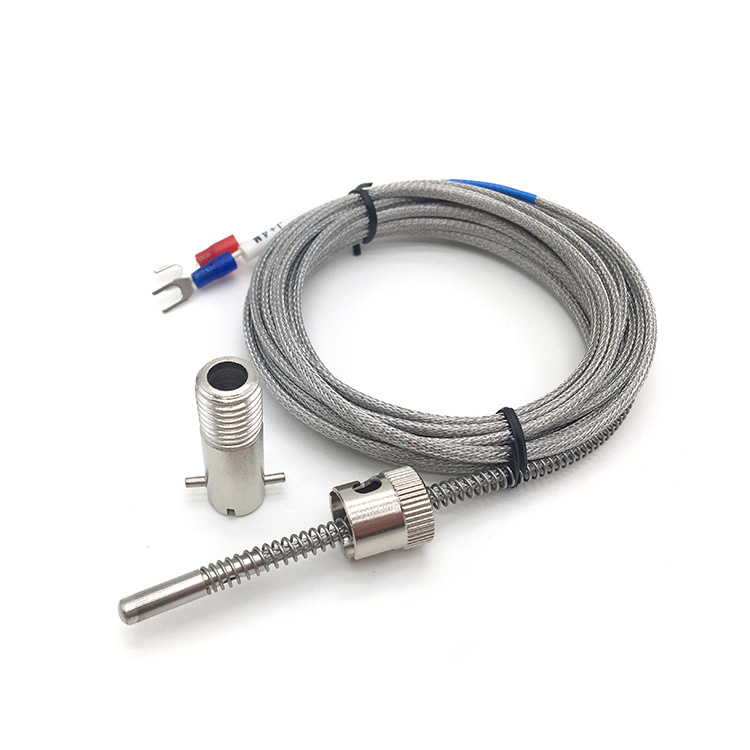

Bayonet Spring Thermocouple (ZZ-BST03-J-4M)

Quantity:
  • ZZ-BST03-J-4M

  • ZONZEN

  • 9025900090

Product Description

Adjustable Bayonet Cap On Spring & adapter
A Bayonet Thermocouple is a general purpose temperature sensor which uses a Bayonet type mounting for process connection. The adjustable bayonet cap allows the sensor to have a positive pressure at the tip when installed correctly.

Features:
. Good heat transfer through adjustable spring pressure
. Insulated assembly or connected with protection tube
. The sensor can be adjusted to a specific length and mounted into the process
. Interchangeable and easily replaceable

Specifications:
Model ZZ-BST03-J
Calibration Type J
Conductor diameter 2*7/0.20mm
Construction Parallel, Flat
Insulation & shield FB-FB-SSB, FB-SSB
Color code ANSI
Accurancy Class 1 or Class 2
Junction Grounded, ungrounded
Temperature range 0-480℃
Lead wire length 4m
Bayonet cap ID. 12.40mm
Bayonet slot 1 or 2
Adapter pin 1 or 2
Adapter (OD.*length) 11mm * 22mm
Spring (OD. *length) 4.8mm *100mm
Probe tube(OD.*length) 4.8mm*15mm
Bayonet cap (OD. & ID.) 16mm & 12.40mm
Material of bayonet & adapter Nickel plated brass
Material of spring stainless steel
Type Bayonet spring & adapter thermocouple
