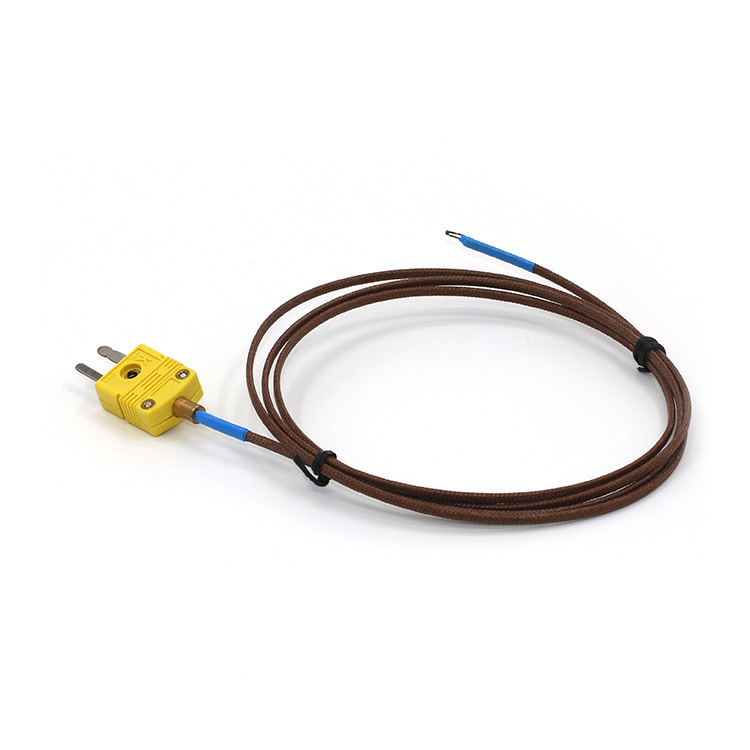

Wire with molded connector thermocouple k type

Quantity:
  • ZZ-WT-M09KM

  • ZONZEN

  • 9025900090

Product Description

Features:
. A thermocouple is a sensor for measuring temperature.
. thermocouple wire or mineral insulated cable is used to make thermocouple probes in order to sense temperature.
. Miniature connector can be easily connected to your meter or measurement system.
. Temperature range: 0-260℃
. Thermocouple calibration: type K, J & T

Specifications:
Model ZZ-WT-M09KM
Calibration Type K
Accuracy Class 1 or Class 2
Color code ANSI
Lead wire Conductor  Chromel-Alumel, 2*7/0.20mm
Construction Parallel, flat
Type  PFA insulated and jacketed stranded #24AWG
Insulation & Jacket PFA/PFA
shield without
Color code +yellow, -red, jacket: brown
Length  1m
Junction Grounded
Temperature range 0-260℃
Termination   Type  Miniature connector
Top model  ZZ-M09-K (MALE )
End  Bead weld
Calibration Type K
Color  Yellow
Type Wire with molded connector thermocouple K type
