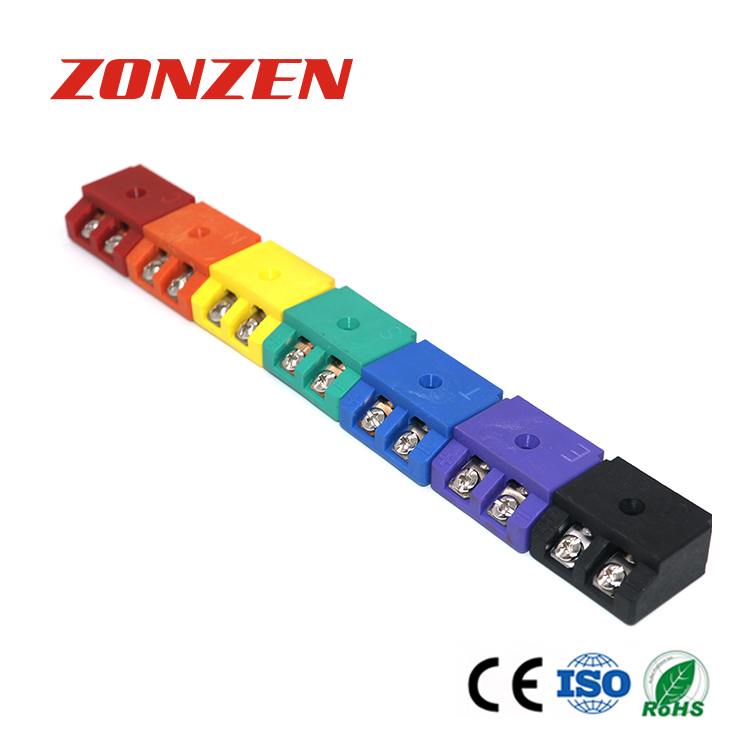

Thermocouple Connector Female

. Model No.: ZZ-PS2
. Available in type K, J, E, T, N, R/S
. Standard type, as a set with the male of ZZ-S01
. The max temperature is to 220°C
. The material of body: Thermoplastic
. ANSI or IEC coded color is available
Quantity:
  • ZZ-PS2
  • ZONZEN
  • 853669000

Product Description

Thermocouple Connector Female

Specification

Order code Description Calibration Material of Pins Material of Body Max. temperature Color
(ANSI)
Positive (+) Negtive (-)
ZZ-PS2-K-F Female Type K NiCr NiAl Thermoplastic 220 Yellow
ZZ-PS2-K-F Female Type K NiCr NiAl Thermoplastic 220 Green(IEC)
ZZ-PS2-J-F Female Type J Fe CuNi Thermoplastic 220 Black
ZZ-PS2-T-F Female Type T Cu CuNi Thermoplastic 220 Blue
ZZ-PS2-E-F Female Type E NiCr CuNi Thermoplastic 220 Violet
ZZ-PS2-N-F Female Type N NiCrSi NiSiMg Thermoplastic 220 Orange
ZZ-PS2-S-F Female Type S Cu CuNi Thermoplastic 220 Green
