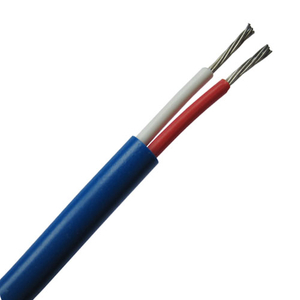

Stainless steel braided PVC insulated parallel twin thermocouple wire and thermocouple extension wire

. Calibration: Type K/KX, J/JX, E/EX, T/TX, N/NX and RX, SX
. Wire type: Solid or stranded
. Number of pairs: Single
. Insulation: PVC
. Outer shield: Stainless steel braided or tinned copper braided
. Construction: Parallel conductor
. Tolerance: Standard limits of error and special limits of error
. Max. operating temperature: 105°C
. Color code: ANSI, IEC, JIS, DIN

Quantity:



Inquiry Add to Basket

Feature

Stainless steel braided PVC insulated parallel twin thermocouple wire and thermocouple extension wire

. Continuous use up to 105°C

. Short term use up to 150°C

. Fire and flame retardant
. Very good chenical, abrasion, moisture and scratch resistance

PVC-PVC Physical Properties

Characteristics	Insulation	Jacket
Abrasion Resistance	Good	Good
Cut Through Resistance	Good	Good
Moisture Resistance	Excellent	Excellent
Solvent Resistance	Poor	Poor
Service Temperature	105°C continuous 150°C single	105°C continuous 150°C single
Flame Test	Self-extinguishing	Self-extinguishing

Specification

Item	Specification
Calibration	Type J/JX	Type K/KX	Type T/TX	Type E/EX	Type N/NX	Type RX/SX	Type BX
	+ Iron - Constantan	+ Chromel - Alumel	+ Copper - Constantan	+ Chromel - Constantan	+ Nirosil - Nisil	+ Copper - Alloy 11	+ Copper-S - Copper-E
Wire size	12, 14, 16, 18, 20, 24, 26, 28, 30, 32AWG
Wire type	Solid or Stranded
Construction	Parallel conductors
Number of pair	Single
Insulation	PVC
Jacket	PVC
Outer shield	Stainless steel braided or Tinned copper braided
Tolerance	Standard limits of error or special limits of error
Max. Operating temperature	105°C
Color code	ANSI, IEC, JIS, DIN
Packing	Roll or spool (As required)

Order Code

Model explanation

MODEL-KX-PVC-PVC-SSB

1 Calibration: K/KX, J/JX, T/TX, E/EX, N/NX, SX, RX, BX
2 Insulation: PVC
3 Jacket: PVC
4 Outer shield: "SSB" means "Stainless steel braided", "TCB" means "Tinned copper braided"
5 Wire size: 12, 14, 16, 18, 20, 24, 26, 28, 30, 32AWG
5 "S" means "Stranded"; "Blank" means "Solid"

Order code:

Type	Wire Size(AWG)	Diameter (mm)	Conductor	Calibration
Type	Wire Size(AWG)	Diameter (mm)	Conductor	Type J	Type K	Type T	Type E
Extension wire	12	1/1.78	Solid	JX-PVC-PVC-SSB-12	KX-PVC-PVC-SSB-12	TX-PVC-PVC-SSB-12	EX-PVC-PVC-SSB-12
	12 7/20	7/0.67	Stranded	JX-PVC-PVC-SSB-12S	KX-PVC-PVC-SSB-12S	TX-PVC-PVC-SSB-12S	EX-PVC-PVC-SSB-12S
	14	1/1.63	Solid	JX-PVC-PVC-SSB-14	KX-PVC-PVC-SSB-14	TX-PVC-PVC-SSB-14	EX-PVC-PVC-SSB-14
	14 7/22	7/0.635	Stranded	JX-PVC-PVC-SSB-14S	KX-PVC-PVC-SSB-14S	TX-PVC-PVC-SSB-14S	EX-PVC-PVC-SSB-14S
	16	1/1.29	Solid	JX-PVC-PVC-SSB-16	KX-PVC-PVC-SSB-16	TX-PVC-PVC-SSB-16	EX-PVC-PVC-SSB-16
	16 7/24	7/0.50	Stranded	JX-PVC-PVC-SSB-16S	KX-PVC-PVC-SSB-16S	TX-PVC-PVC-SSB-16S	EX-PVC-PVC-SSB-16S
	20	1/0.80	Solid	JX-PVC-PVC-SSB-20	KX-PVC-PVC-SSB-20	TX-PVC-PVC-SSB-20	EX-PVC-PVC-SSB-20
	20 7/28	7/0.30	Stranded	JX-PVC-PVC-SSB-20S	KX-PVC-PVC-SSB-20S	TX-PVC-PVC-SSB-20S	EX-PVC-PVC-SSB-20S
	24	1/0.50	Solid	JX-PVC-PVC-SSB-24	KX-PVC-PVC-SSB-24	TX-PVC-PVC-SSB-24	EX-PVC-PVC-SSB-24
	24 7/32	7/0.20	Stranded	JX-PVC-PVC-SSB-24S	KX-PVC-PVC-SSB-24S	TX-PVC-PVC-SSB-24S	EX-PVC-PVC-SSB-24S
	26	1/0.40	Solid	JX-PVC-PVC-SSB-26	KX-PVC-PVC-SSB-26	TX-PVC-PVC-SSB-26	EX-PVC-PVC-SSB-26
	26 7/34	7/0.16	Stranded	JX-PVC-PVC-SSB-26S	KX-PVC-PVC-SSB-26S	TX-PVC-PVC-SSB-26S	EX-PVC-PVC-SSB-26S
	28	1/0.32	Solid	JX-PVC-PVC-SSB-28	KX-PVC-PVC-SSB-28	TX-PVC-PVC-SSB-28	EX-PVC-PVC-SSB-28
	28 7/36	7/0.13	Stranded	JX-PVC-PVC-SSB-28S	KX-PVC-PVC-SSB-28S	TX-PVC-PVC-SSB-28S	EX-PVC-PVC-SSB-28S
	30	1/0.25	Solid	JX-PVC-PVC-SSB-30	KX-PVC-PVC-SSB-30	TX-PVC-PVC-SSB-30	EX-PVC-PVC-SSB-30
	32	1/0.20	Solid	JX-PVC-PVC-SSB-32	KX-PVC-PVC-SSB-32	TX-PVC-PVC-SSB-32	EX-PVC-PVC-SSB-32

Type	Wire Size(AWG)	Diameter (mm)	Conductor	Calibration
Type	Wire Size(AWG)	Diameter (mm)	Conductor	Type J	Type K	Type T	Type E
Thermocouple wire	12	1/1.78	Solid	J-PVC-PVC-SSB-12	K-PVC-PVC-SSB-12	T-PVC-PVC-SSB-12	E-PVC-PVC-SSB-12
	12 7/20	7/0.67	Stranded	J-PVC-PVC-SSB-12S	K-PVC-PVC-SSB-12S	T-PVC-PVC-SSB-12S	E-PVC-PVC-SSB-12S
	14	1/1.63	Solid	J-PVC-PVC-SSB-14	K-PVC-PVC-SSB-14	T-PVC-PVC-SSB-14	E-PVC-PVC-SSB-14
	14 7/22	7/0.635	Stranded	J-PVC-PVC-SSB-14S	K-PVC-PVC-SSB-14S	T-PVC-PVC-SSB-14S	E-PVC-PVC-SSB-14S
	16	1/1.29	Solid	J-PVC-PVC-SSB-16	K-PVC-PVC-SSB-16	T-PVC-PVC-SSB-16	E-PVC-PVC-SSB-16
	16 7/24	7/0.50	Stranded	J-PVC-PVC-SSB-16S	K-PVC-PVC-SSB-16S	T-PVC-PVC-SSB-16S	E-PVC-PVC-SSB-16S
	20	1/0.80	Solid	J-PVC-PVC-SSB-20	K-PVC-PVC-SSB-20	T-PVC-PVC-SSB-20	E-PVC-PVC-SSB-20
	20 7/28	7/0.30	Stranded	J-PVC-PVC-SSB-20S	K-PVC-PVC-SSB-20S	T-PVC-PVC-SSB-20S	E-PVC-PVC-SSB-20S
	24	1/0.50	Solid	J-PVC-PVC-SSB-24	K-PVC-PVC-SSB-24	T-PVC-PVC-SSB-24	E-PVC-PVC-SSB-24
	24 7/32	7/0.20	Stranded	J-PVC-PVC-SSB-24S	K-PVC-PVC-SSB-24S	T-PVC-PVC-SSB-24S	E-PVC-PVC-SSB-24S
	26	1/0.40	Solid	J-PVC-PVC-SSB-26	K-PVC-PVC-SSB-26	T-PVC-PVC-SSB-26	E-PVC-PVC-SSB-26
	26 7/34	7/0.16	Stranded	J-PVC-PVC-SSB-26S	K-PVC-PVC-SSB-26S	T-PVC-PVC-SSB-26S	E-PVC-PVC-SSB-26S
	28	1/0.32	Solid	J-PVC-PVC-SSB-28	K-PVC-PVC-SSB-28	T-PVC-PVC-SSB-28	E-PVC-PVC-SSB-28
	28 7/36	7/0.13	Stranded	J-PVC-PVC-SSB-28S	K-PVC-PVC-SSB-28S	T-PVC-PVC-SSB-28S	E-PVC-PVC-SSB-28S
	30	1/0.25	Solid	J-PVC-PVC-SSB-30	K-PVC-PVC-SSB-30	T-PVC-PVC-SSB-30	E-PVC-PVC-SSB-30
	32	1/0.20	Solid	J-PVC-PVC-SSB-32	K-PVC-PVC-SSB-32	T-PVC-PVC-SSB-32	E-PVC-PVC-SSB-32

Note: The products referenced above represent the most popular constructions. Other constructions can be manufactured to meet individual specification and application requirements.

Technical Data

Color Code & Initial Calibration Tolerance for Thermocouple Extension Wire:

Thermocouple extension type		ANSI Color Code		Initial Calibration Tolerances
Wire Alloys	Calibration	Conductor (+/-)	Jacket	Temperature Range	Standard Limits	Special Limits
Iron (+) vs. Constantan(-)	JX	White/Red	Black	0°C to +200°C	± 2.2°C	± 1.1°C
Chromel (+) vs. Alumel (-)	KX	Yellow/Red	Yellow	0°C to +200°C	± 2.2°C	± 1.1°C
Copper(+) vs. Constantan(-)	TX	Blue/Red	Blue	-60°C to +100°C	± 1.1°C	± 0.5°C
Chromel(+) vs. Constantan(-)	EX	Purple/Red	Purple	0°C to +200°C	± 1.7°C	± 1.1°C
Nirosil (+) vs. Nisil (-)	NX	Orange/Red	Orange	0°C to +200°C	± 2.2°C	± 1.1°C
Copper (+) vs. Alloy 11 (-)	RX/SX	Black/Red	Green	0°C to +200°C	± 5°C	-
Copper S (+) vs. -Copper E (-)	BX	Gray/Red	Gray	0°C to +200°C	± 3.7°C	-

Color Code & Initial Calibration Tolerance for Thermocouple Wire:

Thermocouple type		ANSI Color Code		Initial Calibration Tolerances
Wire Alloys	Calibration	Conductor (+/-)	Jacket	Temperature Range	Standard Limits	Special Limits
Iron(+) vs. Constantan(-)	J	White/Red	Brown	0°C to +285°C 285°C to +750°C	± 2.2°C ± 0.75%	± 1.1°C ± 0.4%
CHROMEL(+) vs. ALUMEL(-)	K	Yellow/Red	Brown	-200°C to -110°C -110°C to 0°C 0°C to +285°C 285°C to +1250°C	± 2% ± 2.2°C ± 2.2°C ± 0.75%	± 1.1°C ± 0.4%
Copper(+) vs. Constantan(-)	T	Blue/Red	Brown	-200°C to -65°C -65°C to +130°C 130°C to +350°C	± 1.5% ± 1°C ± 0.75%	± 0.8% ± 0.5°C ± 0.4%
CHROMEL(+) vs. Constantan(-)	E	Purple/Red	Brown	-200°C to -170°C -170°C to +250°C 250°C to +340°C 340°C+900°C	± 1% ± 1.7°C ± 1.7°C ± 0.5%	± 1°C ± 1°C ± 0.4% ± 0.4%

Nominal Insulation Thickness:

Wire Size (AWG)	Conductor Insulation Thickness (mm)	Jacket Insulation Thickness (mm)	Outer Diameter (mm)
16	0.45	1.00	5.1X7.3
16 7/24	0.45	1.00	5.1X7.3
20	0.35	0.80	3.3X4.5
20 7/28	0.35	0.80	3.3X4.5
24	0.35	0.60	2.9X4.2
24 7/32	0.35	0.60	2.9X4.2
26	0.30	0.60	2.8X4.0
28	0.30	0.60	2.7X3.8
30	0.30	0.60	2.6X3.8
