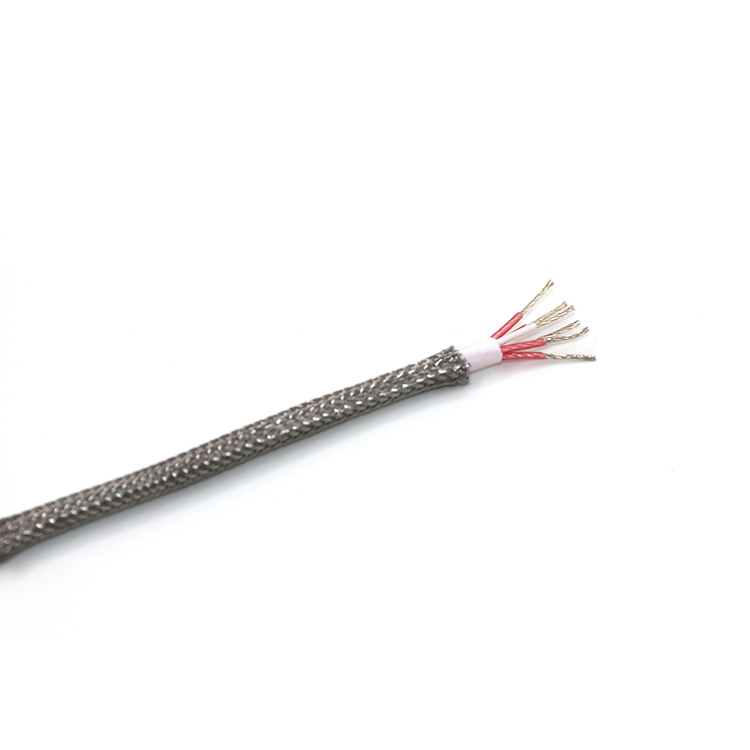

Stainless steel braid PVC insulated 6 cores twisted RTD wire

Share to:
Model: PVC-PVC-SSB-6CU-24S
Number of cores: 6 cores
Wire size: 24AWG, 6*7/0.2MM, stranded
Conductor insulation: PVC
Jacket insulation: PVC
Outer shield: Stainless steel braid
Type of wire: Twisted
Color: 4 red, 2 white, Jacket: white
Max. temperature: 105 ℃

Product Description

1) Continuous use up to 105
2) Short term use up to 150
3) Good chemical and moisture resistance
4) Provides accurate temperature measure with high temperature stability
5) Test report is available
Model explanation:
1. Conductor insulation: PVC
2. Jacket insulation: PVC
3. Outer shield: Stainless steel braid
4. No. of core: 6
5. Conductor: Silver-plated copper
6. Wire size: 24AWG, 7/0.20mm
7. “S” means “Stranded, Blank means Solid

Model no. PVC-PVC-SSB-6CU-24S
Conductor   Size 24AWG, 6*7/0.20MM, Stranded
Cross sectional area 0.22mm2
Construction Twisted
No. of core 6
Conductor insulation Material PVC
Thickness 0.35MM
Type Extruded
Color 4 Red, 2 White
Jacket insulation Material FEP
Thickness 0.60MM
Type Extruded
Color White
Outer shield
Material Stainless steel braid
Thickness 0.25mm
Type Braided
Outer diameter 6.0mm (+/-0.1mm)
Max. Operating temperature 105
Packing 100M -1000M per Roll or spool (As required)
