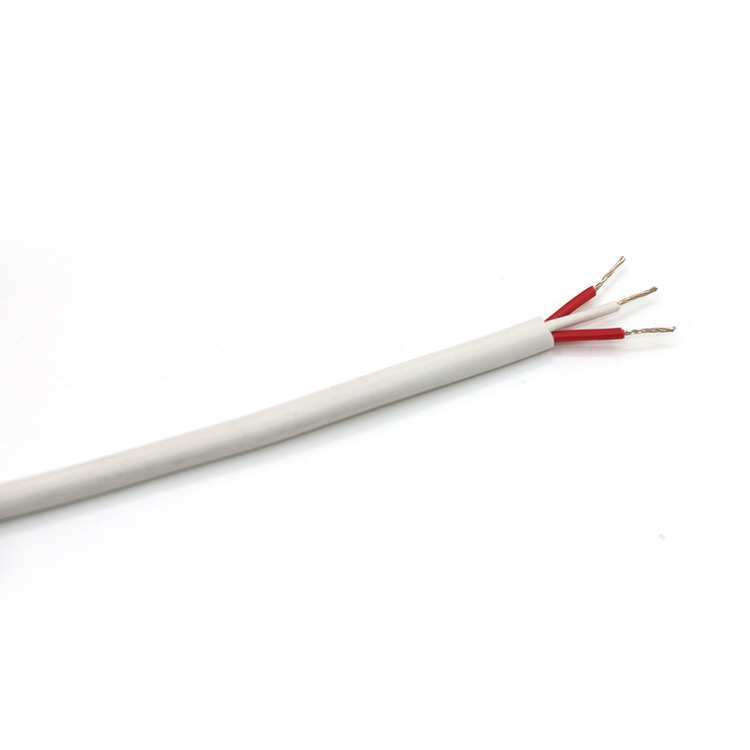

PVC insulated RTD wire 3 core resistance thermometer wire - Twisted

Share to:
Number of cores: 3 cores
Wire size: 24AWG, 3*7/0.2MM, stranded
Conductor insulation: PVC
Jacket insulation: PVC
Type of wire: Twisted
Color: 2 red, 1 white, Jacket: white
Max. temperature: 105 ℃
Quantity:

Product Description

Features:
1) Continuous use up to 105℃
2) Short term use up to 150℃
3) Good chemical and moisture resistance
4) Provides accurate temperature measure with high temperature stability
5) Test report is available

 Model explanation:
PVC-PVC-3CU-24S

1. Conductor insulation: PVC
2. Jacket insulation: PVC
3. No. of core: 3
4. Conductor: Silver-plated copper
5. Wire size: 24AWG, 7/0.20mm
6. “S” means “Stranded”, "Blank" means "Solid)

Specifications:

Model no.

PVC-PVC-3CU-24S

Conductor

Size

24AWG, 3*7/0.20MM, Stranded

Cross sectional area

0.22mm2

Construction

Twisted

No. of core

3

Conductor insulation

Material

PVC

Thickness

0.35MM

Type

Extruded

Color

2 Red, 1 White

Jacket insulation

Material

PVC

Thickness

0.60MM

Type

Extruded

Color

White

Outer diameter

4.0mm (+/-0.1mm)

Max. Operating temperature

105℃

Packing

100M -1000M per Roll or spool (As required)
