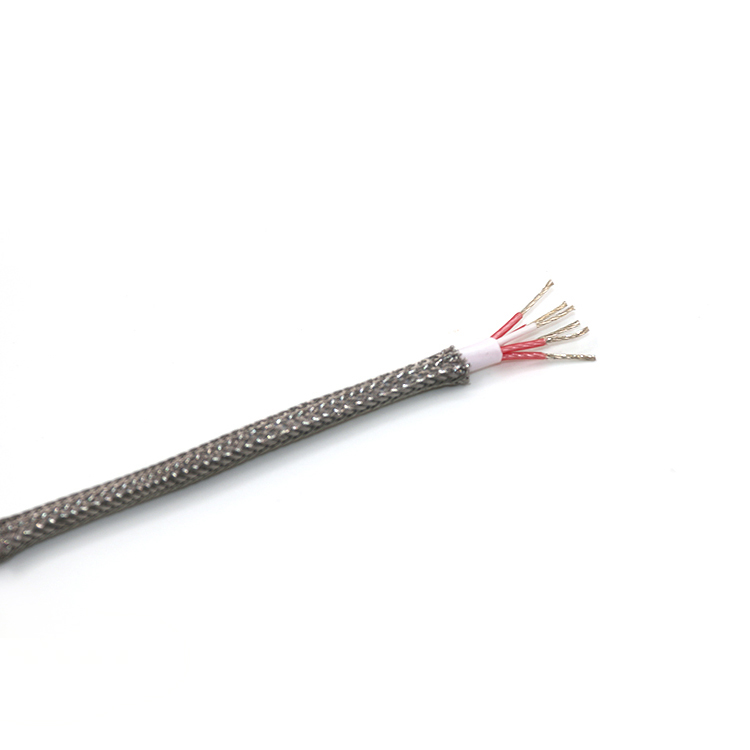

Stainless steel braid PFA insulated 6 cores RTD wire - Twisted

Model: PFA-PFA-SSB-6CU-24S
Number of cores: 6 cores
Wire size: 24AWG, 6*7/0.2MM, stranded
Conductor insulation: PFA
Jacket insulation: PFA
Outer shield: Stainless steel braid
Type of wire: Twisted
Color: 4 red, 2 white, Jacket: white
Max. temperature: 260 ℃
Quantity:

Product Description

Features:
1) Continuous use up to 260℃
2) Short term use up to 315℃
3) Excellent chemical, abrasion and moisture resistance
4) Provides accurate temperature measure with high temperature stability
5) Test report is available


Model explanation:
PFA-PFA-SSB-6CU-24S
1. Conductor insulation: PFA
2. Jacket insulation: PFA
3. Outer shield: Stainless steel braided
4. No. of core: 6
5. Conductor: Silver-plated copper
6. Wire size: 24AWG, 7/0.20mm, “S” means “Stranded”

Specifications:

Model no. PFA-PFA-SSB-6CU-24S
Conductor   Size 24AWG, 6*7/0.20MM, Stranded
Cross sectional area 0.22mm2
Construction Twisted
No. of core 6
Conductor insulation Material PFA
Thickness 0.20MM
Type Extruded
Color 4 Red, 2 White
Jacket insulation Material PFA
Thickness 0.30MM
Type Extruded
Color White
Outer shield Material Stainless steel
Thickness 0.25mm
Type braided
Outer diameter 4.2mm (+/-0.1mm)
Max. Operating temperature 260
Packing 100M -1000M per Roll or spool (As required)
