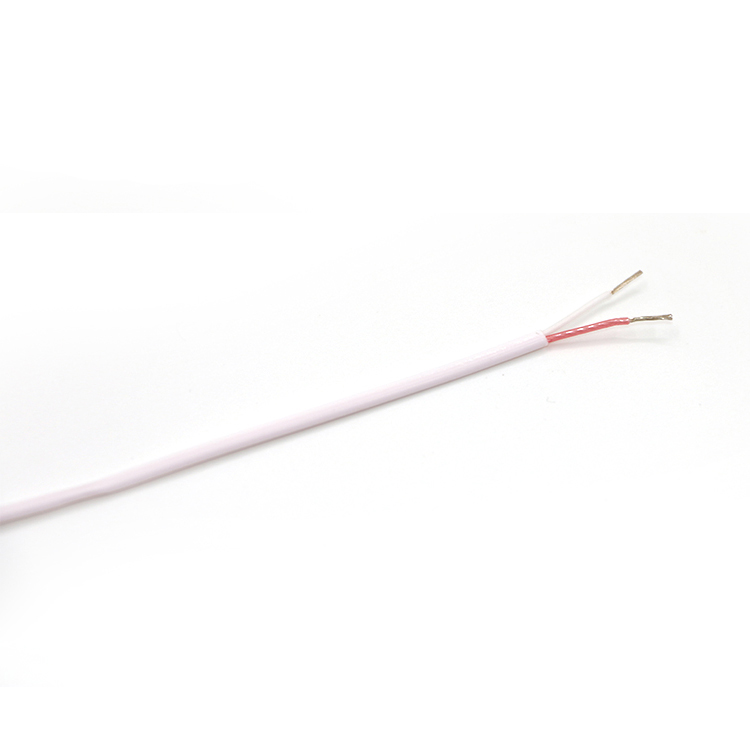

Product Description
1) Continuous use up to 260℃
2) Short term use up to 315℃
3) Excellent chemical, abrasion and moisture resistance
4) Provides accurate temperature measure with high temperature stability
5) Test report is available
Model explanation:
1. Conductor insulation: PFA
2. Jacket insulation: PFA
3. No. of core: 2
4. Conductor: Silver-plated copper
5. Wire size: 24AWG, 7/0.20mm, Stranded
6. “S” means “ Stranded”, “Blank” means “ Solid”
Specifications:
| Model no. | PFA-PFA-2CU-24S | |
| Conductor | Size | 24AWG, 2*7/0.20MM, Stranded |
| Cross sectional area | 0.22mm2 | |
| Construction | Parallel | |
| No. of core | 2 | |
| Conductor insulation | Material | PFA |
| Thickness | 0.20MM | |
| Type | Extruded | |
| Color | 1 Red, 1 White | |
| Jacket insulation | Material | PFA |
| Thickness | 0.25MM | |
| Type | Extruded | |
| Color | White | |
| Outer diameter | 1.5x2.5mm (+/-0.1mm) | |
| Max. Operating temperature | 260℃ | |
| Packing | 100M -1000M per Roll or spool (As required) | |
