ZSM
ZONZEN
Product Description

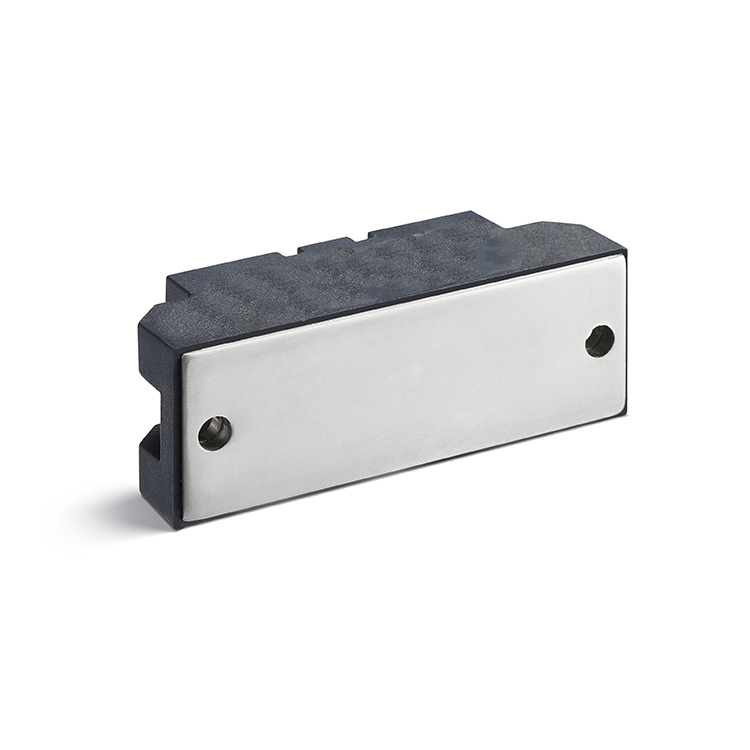

ZSM series are power line relays, dual SCR power output, hybrid technology provides good thermal performance and long cyclic life. The control voltage is 3-32VDC or 90-280VAC, load voltage range from 280VAC~ 480VAC, and load current from 200 to 400A.
Ordering options
1. ZSM: Single phase solid state relay(module type)
2. Load current: 200: 200Amps, 250: 250Amps, 300: 300Amps, 350: 350Amps, 400: 400Amps
3. Control voltage: D: 3~32VDC or A: 90~280VAC
4. Output voltage: A28: 24~280VAC, A48: 48~480VAC, A66: 48~660VAC
5. Switching mode: Z: Zero cross turn-on, R: Random turn-on
Product Selection
Control voltage | Load voltage | Rated operational current | ||||
| 200Amps | 250Amps | 300Amps | 350Amps | 400Amps | ||
| 3 to 32 Vdc | 280 VAC "Z" | ZSM200DA28Z | ZSM250DA28Z | ZSM300DA28Z | ZSM350DA28Z | ZSM400DA28Z |
| 3 to 32 Vdc | 280 VAC "R" | ZSM200DA28R | ZSM250DA28R | ZSM300DA28R | ZSM350DA28R | ZSM400DA28R |
| 90 to 280Vac | 280 VAC "Z" | ZSM200AA28Z | ZSM250AA28Z | ZSM300AA28Z | ZSM350AA28Z | ZSM400AA28Z |
| 90 to 280Vac | 280 VAC "R" | ZSM200AA28R | ZSM250AA28R | ZSM300AA28R | ZSM350AA28R | ZSM400AA28R |
| 3 to 32 Vdc | 480 VAC "Z" | ZSM200DA48Z | ZSM250DA48Z | ZSM300DA48Z | ZSM350DA48Z | ZSM400DA48Z |
| 3 to 32 Vdc | 480 VAC "R" | ZSM200DA48R | ZSM250DA48R | ZSM300DA48R | ZSM350DA48R | ZSM400DA48R |
| 90 to 280Vac | 480 VAC "Z" | ZSM200AA48Z | ZSM250AA48Z | ZSM300AA48Z | ZSM350AA48Z | ZSM400AA48Z |
| 90 to 280Vac | 480 VAC "R" | ZSM200AA48R | ZSM250AA48R | ZSM300AA48R | ZSM350AA48R | ZSM400AA48R |
Technical parameter
Parameter-list | Specification Limits | |
Input Parameter | D | A |
Control Voltage Range | 3 to 32VDC | 90 to 280VAC |
Input Current (Max.) | 13/16mADC @=5V/12V | 29mAAC@=220V |
Must Turn-on Voltage | 3VDC | 90VAC |
Must Turn-off Voltage | 1VDC | 10VAC |
Reverse Voltage (Max.) | -6VDC | / |
Output Parameter | Units | Specification Limits | |||||
Model No.: ZSM | Amps | 200 | 250 | 300 | 350 | 400 | |
Load Current Range | Arms | 0.1 to 200 | 0.1 to 250 | 0.1 to 300 | 0.1 to 350 | 0.1 to 400 | |
Surge Current 20mSec (Max.) | Arms | 2500 | 3400 | 4500 | 5000 | 6000 | |
Load Voltage Range (280V) | Vrms | 24 to 280 | |||||
Transient Overvoltage (280V) | Vpk | ≥800 | |||||
Load Voltage Range (480V) | Vrms | 48 to 480 | |||||
Transient Overvoltage (480V) | Vpk | ≥1200 | |||||
Frequency Range | Hz | 47 to 63 | |||||
Off State dv/dt (Min.) | V/µsec | 500 | |||||
Off State Leakage Current (Max.) | mArms | ≤8 | |||||
On State Voltage Drop (Max.) | Vrms | 1.8 | |||||
Thermal Resistance, (Rthjc) | °C/W | 0.22 | 0.15 | 0.14 | 0.13 | 0.12 | |
Turn on Time (Max.) “Z” | Cycle | 1/2 | |||||
Turn off Time (Max.) “D” | Cycle | 1/2 | |||||
Turn on Time (Max.) “R” | mSec | 1 | |||||
Turn off Time (Max.) “A” | mSec | 10 | |||||
| General Specifications (Ta=25° C) | |||||
Description | 200 | 250 | 300 | 350 | 400 |
Dielectric Strength, Input to Output (50/60 Hz) | 2500Vrms | ||||
Dielectric Strength, Input/Output to Base (50/60 Hz) | 2500Vrms | ||||
Minimum Insulation Resistance (@ 500 VDC) | 10 9 Ω | ||||
Maximum Capacitance, Input/Output | 0.8pF | ||||
Ambient Operating Temperature Range | -30 to 80ºC | ||||
Ambient Storage Temperature Range | -30 to 100ºC | ||||
Humidity per IEC60068-2-78 | 95% | ||||
LED Input Status Indicator | Red | ||||
Baseplate Material | Pure copper | ||||
Weight | 280g | ||||
Connection Diagram
|
Dimensions
|
