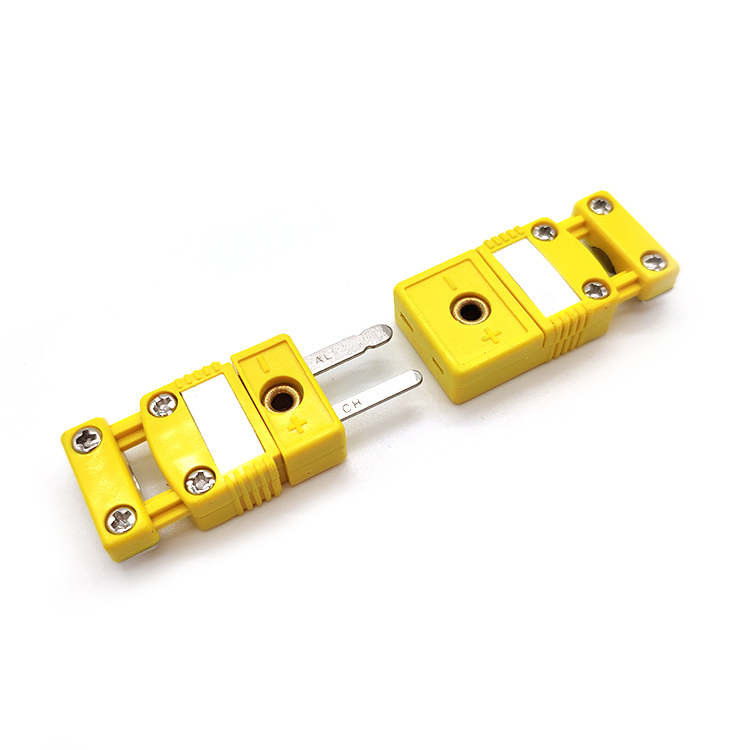

Most Pupular Miniature Size Flat Pin Thermocouple Connector With Plastic Cable Clamp

. Miniature connector with plastic clamp
. Model No.: ZZ-M09C
. Thermocouple calibration type K, J, E, T, N, R/S
. Male with flat pins
. The max temperature is up to 220°C
. The material of body: Thermoplastic
. Color coded for ANSI, IEC, JIS
. Accepts wires from 0.2 mm to 0.80 mm
. Maximum cable diameter 4.5 mm
Quantity:
  • ZZ-M09

  • ZONZEN

  • 8536690000

Product Description

Most Popular Miniature Size Flat Pin Thermocouple Connector With Plastic Cable Clamp

Application: Connector for thermocouple and RTD circuits. Suited for small wires and mineral insulated cables.

Construction:
. Thermoplastic body with original thermocouple material pins
. Easy wire connection through sandwich construction
. Polarized pins ensure proper connection
. Oversize screw head for easy wiring

Specification

Order code Description Calibration Material of Pins Material of Body Max. temperature Color
(ANSI)
Positive (+) Negtive (-)
ZZ-M09C-K Male+Female Type K NiCr NiAl Thermoplastic 220 Yellow
ZZ-M09C-K-M Male Type K NiCr NiAl Thermoplastic 220 Yellow
ZZ-M09C-K-F Female Type K NiCr NiAl Thermoplastic 220 Yellow
ZZ-M09C-J Male+Female Type J Fe CuNi Thermoplastic 220 Black
ZZ-M09C-J-M Male Type J Fe CuNi Thermoplastic 220 Black
ZZ-M09C-J-F Female Type J Fe CuNi Thermoplastic 220 Black
ZZ-M09C-T Male+Female Type T Cu CuNi Thermoplastic 220 Blue
ZZ-M09C-T-M Male Type T Cu CuNi Thermoplastic 220 Blue
ZZ-M09C-T-F Female Type T Cu CuNi Thermoplastic 220 Blue
ZZ-M09C-E Male+Female Type E NiCr CuNi Thermoplastic 220 Violet
ZZ-M09C-E-M Male Type E NiCr CuNi Thermoplastic 220 Violet
ZZ-M09C-E-F Female Type E NiCr CuNi Thermoplastic 220 Violet
ZZ-M09C-N Male+Female Type N NiCrSi NiSiMg Thermoplastic 220 Orange
ZZ-M09C-N-M Male Type N NiCrSi NiSiMg Thermoplastic 220 Orange
ZZ-M09C-N-F Female Type N NiCrSi NiSiMg Thermoplastic 220 Orange
ZZ-M09C-S Male+Female Type S Cu CuNi Thermoplastic 220 Green
ZZ-M09C-S-M Male Type S Cu CuNi Thermoplastic 220 Green
ZZ-M09C-S-F Female Type S Cu CuNi Thermoplastic 220 Green
