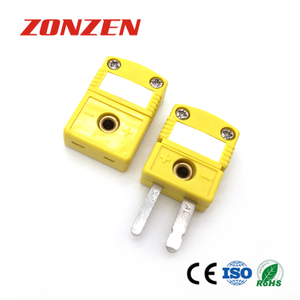

Miniature Size Thermocouple Connector

. Model: ZZ-M03
. Thermocouple calibration type: K, J, T
. Male with flat pins
. The max temperature up to 120°C
. The material of body: Thermoplastic
. Calibration standard: ANSI
Quantity:
  • ZZ-M03
  • ZONZEN
  • 8536690000

Product Description

Miniature Size Thermocouple Connector

Specification

Order code Description Calibration Material of Pins Material of Body Max. temperature Color
(ANSI)
Positive (+) Negtive (-)
ZZ-M03-K Male+Female Type K NiCr NiAl Thermoplastic 120 Yellow
ZZ-M03-K-M Male Type K NiCr NiAl Thermoplastic 120 Yellow
ZZ-M03-K-F Female Type K NiCr NiAl Thermoplastic 120 Yellow
ZZ-M03-J Male+Female Type J Fe CuNi Thermoplastic 120 Black
ZZ-M03-J-M Male Type J Fe CuNi Thermoplastic 120 Black
ZZ-M03-J-F Female Type J Fe CuNi Thermoplastic 120 Black
ZZ-M03-T Male+Female Type T Cu CuNi Thermoplastic 120 Blue
ZZ-M03-T-M Male Type T Cu CuNi Thermoplastic 120 Blue
ZZ-M03-T-F Female Type T Cu CuNi Thermoplastic 120 Blue
