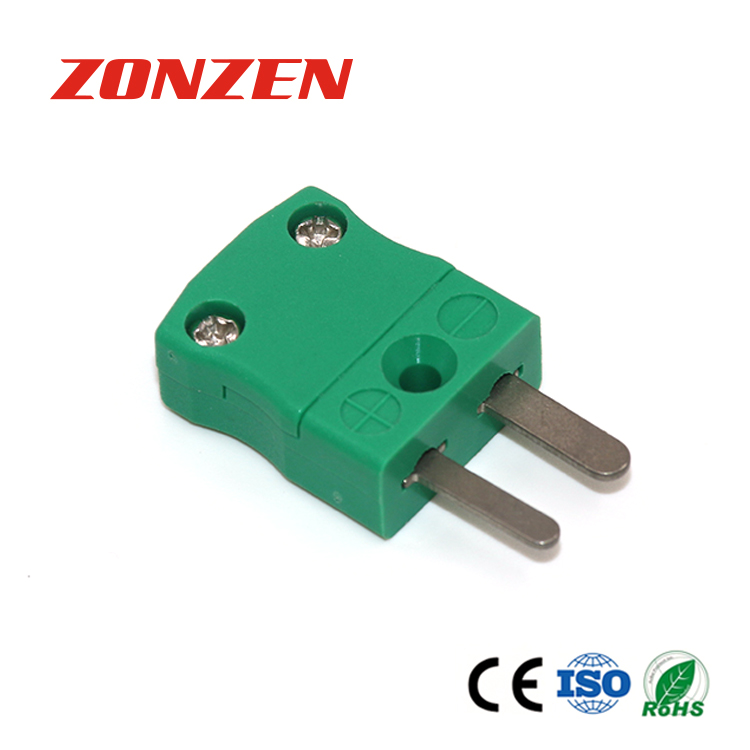

K Type Thermocouple Connector

. Model No.: ZZ-M13
. Thermocouple calibration: Type K
. Male with flat pins
. The max temperature up to 220°C
. The material of body: Thermoplastic
. Calibration standard: IEC, Green color
. Accepts wires from 0.2 mm to 0.80 mm
. Maximum cable diameter 4.5 mm
Quantity:
  • ZZ-M13

  • ZONZEN

  • 8536690000

Product Description

K Type Thermocouple Connector ZZ-M13

Application: Connector for thermocouple and RTD circuits. Suited for small wires and mineral insulated cables.

Construction:
. Thermoplastic body with original thermocouple material pins
. Easy wire connection through sandwich construction
. Polarized pins ensure proper connection
. Oversize screw head for easy wiring

Specification

Order code Description Calibration Material of Pins Material of Body Max. temperature Color
(IEC)
Positive (+) Negtive (-)
ZZ-M13-K Male+Female Type K NiCr NiAl Thermoplastic 220 Green
ZZ-M13-K-M Male Type K NiCr NiAl Thermoplastic 220 Green
ZZ-M13-K-F Female Type K NiCr NiAl Thermoplastic 220 Green
