ZF10KF3950FA300
ZONZEN
Product Description

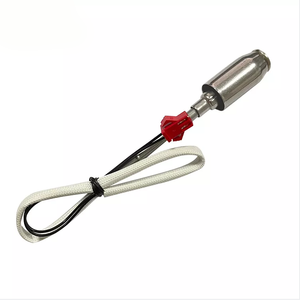

This product is used for BBQ food probe, food temperature measurement and board mount. All parameters and dimensions can be customized made as required.
Odering options
1. Symbol
2. Rated resistance(25℃): 0.5K, 1K, 5K, 8K, 10K, 15K, 20K, 30K, 50K, 100K, 200K, 500K
3. Resistance tolerance(%): E: ± 0.5, F: ± 1.0, G: ± 2.0, H: ± 3.0, J: ± 5.0, K: ± 10, X: Special
4. B value(25/50℃, 25/85℃): 3380K, 3435K, 3450K, 3360K, 3950K, 4050K, 4100K, 4200K, 4300K
5. B value tolerance(%): E: ± 0.5, F: ± 1.0, G: ± 2.0, H: ± 3.0, J: ± 5.0, K: ± 10, X: Special
6. B value temperature: A: 25/50℃, B: 25/85℃, C: -20/25℃, D: 0/25℃, E: 0/50℃, F: 0/100℃
G: 5/25℃, H: 25/75℃, M: 25/100℃, N: 100/200℃, X: Special
7. Cable lenth(mm): 100~2000MM
Specifications
| Probe | Φ3, Φ4, Φ5, Φ6 or customized, SS304 pointed tip, round tip, straight, bent |
| Wire | Silicon, PTFE, Stainless steel mesh |
| Connector | Audio jack plug |
| Withstand voltage | 1500V/3mA/5s |
| Rated power | 10mW |
| Response time | 3~18s |
| Operating temperature | -30~300℃ |
| Others can be customed made | |
| Shell | Aluminum, Brass, Ceramic, Nickel plated copper, Stainless steel |
| Connector | TJC1255, ZH, PH, SAN, EH, SMR, SMP, XHB, JC25, TJC8, JST-XAP-02V |
| Wire cable | PVC, FEP, XL-PE, PTEF, silicone rubber |
| Withstand voltage | 1500V/3mA/5s |
Dimensions
| |
