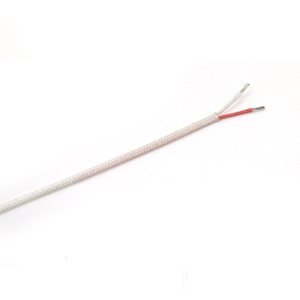

Silicone rubber insulated RTD wire

. Calibration: PT100 (RTD)
. Available with 2 wires, 3 wires, 4 wires, 6 wires and 8 wires
. Available with 26AWG, 24AWG, 20AWG, 18AWG or others
. Conductor: Silver plated copper or Nickel plated copper
. Conductor insulation: PFA, FEP or silicone rubber
. Jacket Insulation: Silicone rubber
. Max. temperature: 180 ℃
Quantity:

Product Description


Feature:
. Used for extending RTD and thermistor signal leads.
. Available with Silicone rubber insulation.
. Wire available with 2, 3, 4, 6 and 8 conductors.
. Spool lengths in meters.

Specification:
. Conductor: Silver-plated copper or nickel plated copper
. Insulation material: Silicone rubber
. Max. temperature: 180

Order code:

Order code Number of Conductors Wire Size(AWG) Wire Type Insulation Inner Shield Outer Shield
Conductor Jacket
SIL-SIL-2CU-24 2 24 Solid Silicone rubber Silicone rubber - -
SIL-SIL--2CU-24S 2 24 7/32 Stranded Silicone rubber Silicone rubber - -
SIL-SSB-SIL-2CU-24 2 24 Solid Silicone rubber Silicone rubber Stainless steel -
SIL-SSB-SIL-2CU-24S 2 24 7/32 Stranded Silicone rubber Silicone rubber Stainless steel -
SIL-SIL-SSB-2CU-24 2 24 Solid Silicone rubber Silicone rubber - Stainless steel
SIL-SIL-SSB-2CU-24S 2 24 7/32 Stranded Silicone rubber Silicone rubber - Stainless steel
SIL-SIL-3CU-24 3 24   Solid Silicone rubber Silicone rubber - -
SIL-SIL-3CU-24S 24 7/32  Stranded Silicone rubber Silicone rubber - -
SIL-SSB-SIL-3CU-24 3 24 Solid Silicone rubber Silicone rubber Stainless steel -
SIL-SSB-SIL-3CU-24S 3  24 7/32    Stranded Silicone rubber Silicone rubber Stainless steel -
SIL-SIL-SSB-3CU-24 3 24 Solid

Silicone rubber

Silicone rubber - Stainless steel
SIL-SIL-SSB-3CU-24S 3 24 7/32 Stranded Silicone rubber Silicone rubber - Stainless steel
SIL-SIL-4CU-24 4 24 Solid Silicone rubber Silicone rubber - -
SIL-SIL-4CU-24S 4 24 7/32 Stranded Silicone rubber Silicone rubber - -
SIL-SSB-SIL-4CU-24 4    24 Solid Silicone rubber Silicone rubber Stainless steel -
SIL-SSB-SIL-4CU-24S 4 24 7/32 Stranded Silicone rubber Silicone rubber Stainless steel -
SIL-SIL-SSB-4CU-24 4      24 Solid Silicone rubber Silicone rubber - Stainless steel
SIL-SIL-SSB-4CU-24S 4 24 7/32 Stranded Silicone rubber Silicone rubber - Stainless steel
SIL-SIL-6CU-24 6 24 Solid Silicone rubber Silicone rubber - -
SIL-SIL-6CU-24S 6 24 7/32 Stranded Silicone rubber Silicone rubber - -
SIL-SSB-SIL-6CU-24 6 24 Solid Silicone rubber Silicone rubber Stainless steel -
SIL-SSB-SIL-6CU-24S 6 24 7/32 Stranded Silicone rubber Silicone rubber Stainless steel -
SIL-SIL-SSB-6CU-24 6 24 Solid Silicone rubber Silicone rubber - Stainless steel
SIL-SIL-SSB-6CU-24S 6 24 7/32 Stranded Silicone rubber Silicone rubber - Stainless steel

 Note: The above order codes represent the more popular constructions. However, other designs are available upon request.
