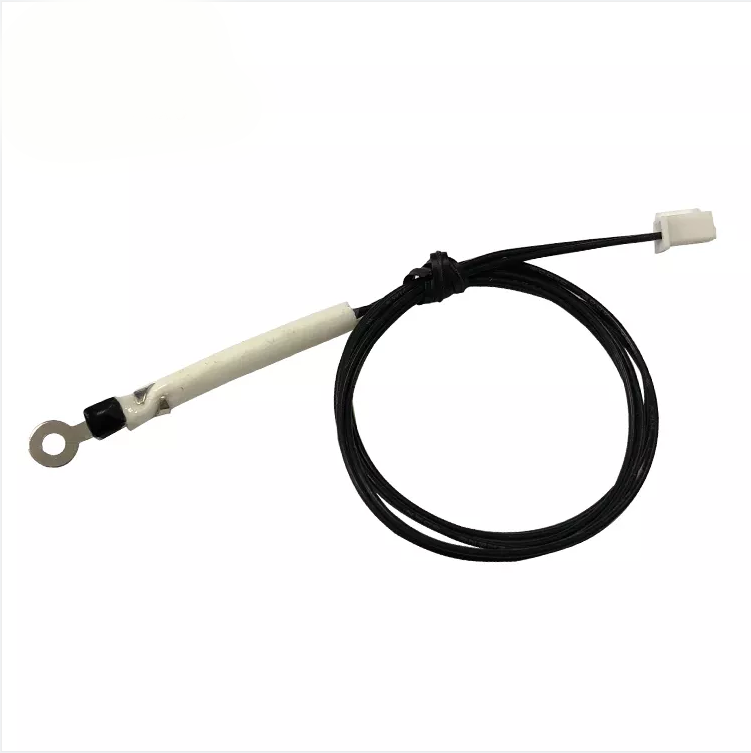

Ring lug terminal NTC temperature sensor for car brake

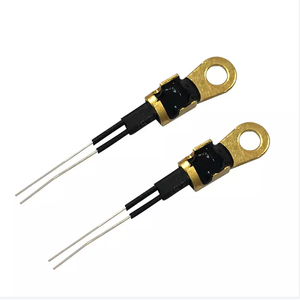

Ring type metal terminal
High sensitivity and rapid response
Compact structure, easy installation, good waterproof
Wide temperature range, good stability and high reliability
Operating temperature range: -40~120℃
Thermal time constant: ≤16s
Quantity:
  • ZC5KF3950FA300

  • ZONZEN

Product Description


This product is used in car brake temperature measurement. All parameters and dimensions can be customized made as required.

Odering options
MODEL
1. Symbol
2. Rated resistance(25℃): 0.5K, 1K, 5K, 8K, 10K, 15K, 20K, 30K, 50K, 100K, 200K, 500K
3. Resistance tolerance(%): E: ± 0.5, F: ± 1.0, G: ± 2.0, H: ± 3.0, J: ± 5.0, K: ± 10, X: Special
4. B value(25/50℃, 25/85℃): 3380K, 3435K, 3450K, 3360K, 3950K, 4050K, 4100K, 4200K, 4300K
5. B value tolerance(%): E: ± 0.5, F: ± 1.0, G: ± 2.0, H: ± 3.0, J: ± 5.0, K: ± 10, X: Special
6. B value temperature: A: 25/50℃, B: 25/85℃, C: -20/25℃, D: 0/25℃, E: 0/50℃, F: 0/100℃
                                      G: 5/25℃, H: 25/75℃, M: 25/100℃, N: 100/200℃, X: Special
7. Cable lenth(mm): 100~2000MM


Specifications

Shell Aluminum, Brass, Ceramic, Nickel plated copper, Stainless steel
Connector TJC1255, ZH, PH, SAN, EH, SMR, SMP, XHB, JC25, TJC8, JST-XAP-02V
Wire cable PVC, FEP, XL-PE, PTEF, silicone rubber
Withstand voltage 1500V/3mA/5s
Rated power 10mW
Response time 3~20s
Operating temperature

-40~120℃


Dimensions

AU3YIYN2GXNVS3GEYX7M8%D
