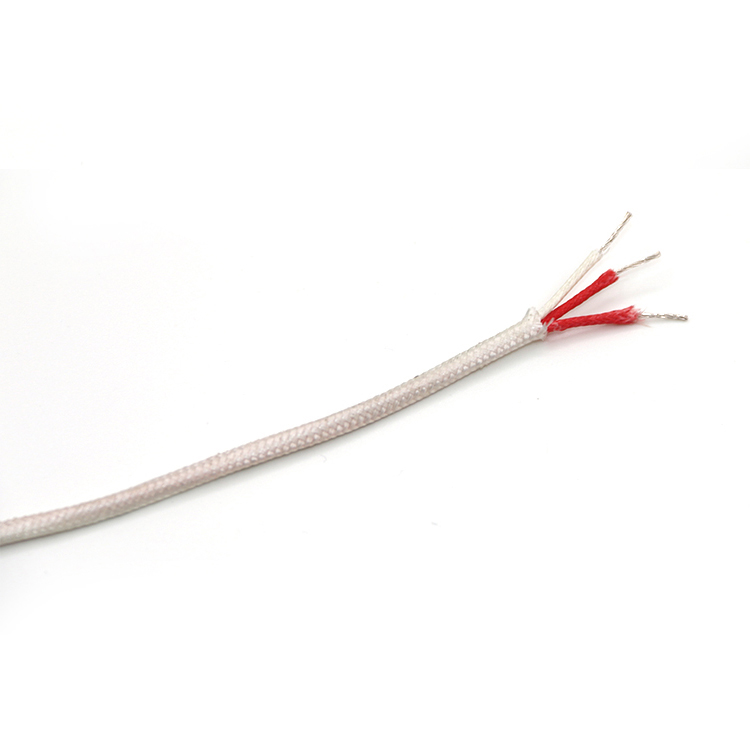

RTD wire fiberglass insulated twisted 3 cores resistance thermometer wire

Model: FB-FB-3CU-24S
Number of cores: 3 cores
Wire size: 24AWG, 3*7/0.2MM, stranded
Conductor insulation: Fiberglass
Jacket insulation: Fiberglass
Type of wire: Twisted
Color: 2 red, 1 white, Jacket: White
Max. temperature: 480 ℃
Quantity:
  • FB-FB-3CU-24S

Product Description

Features:
1) Continuous use up to 480
2) Short term use up to 537
3) Flexible with good moisture, chemical and abrasion resistance
4) Provides accurate temperature measure with high temperature stability

Model explanation:

FB-FB-3CU-24S

1. Conductor insulation: Fiberglass
2. Jacket insulation: Fiberglass
3. No. of core : 3
4. Conductor: Silver-plated copper
5. Wire size: 24AWG, 7/0.20mm, Stranded
6. “S” means “ Stranded”, “Blank” means “ Solid”

Specifications:

Model no.

FB-FB-3CU-24S

Conductor

Size

24AWG, 3*7/0.20MM, Stranded

Cross sectional area

0.22mm2

Construction

twisted

No. Of Core

3

Conductor insulation

Material

Fiberglass

Thickness

0.22MM

Type

Braided

Color

2 Red1 White

Jacket insulation

Material

Fiberglass

Thickness

0.22MM

Type

Braided

Color

White

Outer diameter

2.7mm (+/-0.2mm)

Max. Operating temperature

480

Packing

100M -1000M per Roll or spool (As required)
