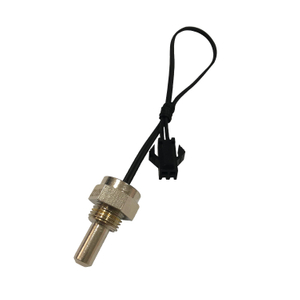

ZW1KF3950FA300
ZONZEN
Product Description
This product is used for water heater/ coffee machine/ water dispenser temperature measurement.
Odering options
1. Symbol
2. Rated resistance(25℃): 0.5K, 1K, 5K, 8K, 10K, 15K, 20K, 30K, 50K, 100K, 200K, 500K
3. Resistance tolerance(%): E: ± 0.5, F: ± 1.0, G: ± 2.0, H: ± 3.0, J: ± 5.0, K: ± 10, X: Special
4. B value(25/50℃, 25/85℃): 3380K, 3435K, 3450K, 3360K, 3950K, 4050K, 4100K, 4200K, 4300K
5. B value tolerance(%): E: ± 0.5, F: ± 1.0, G: ± 2.0, H: ± 3.0, J: ± 5.0, K: ± 10, X: Special
6. B value temperature: A: 25/50℃, B: 25/85℃, C: -20/25℃, D: 0/25℃, E: 0/50℃, F: 0/100℃
G: 5/25℃, H: 25/75℃, M: 25/100℃, N: 100/200℃, X: Special
7. Cable lenth(mm): 100~2000MM
Specifications
| Shell | Screw, bullet type etc |
| Connector | Can be customed-made |
| Wire cable | PVC, FEP, XL-PE, PTEF, silicone rubber |
| Withstand voltage | 1500V/3mA/5s |
| Rated power | 10mW |
| Thermal time constant | ≦10s（in water） |
| Operating temperature | -30~125℃ |
Dimensions
| |
