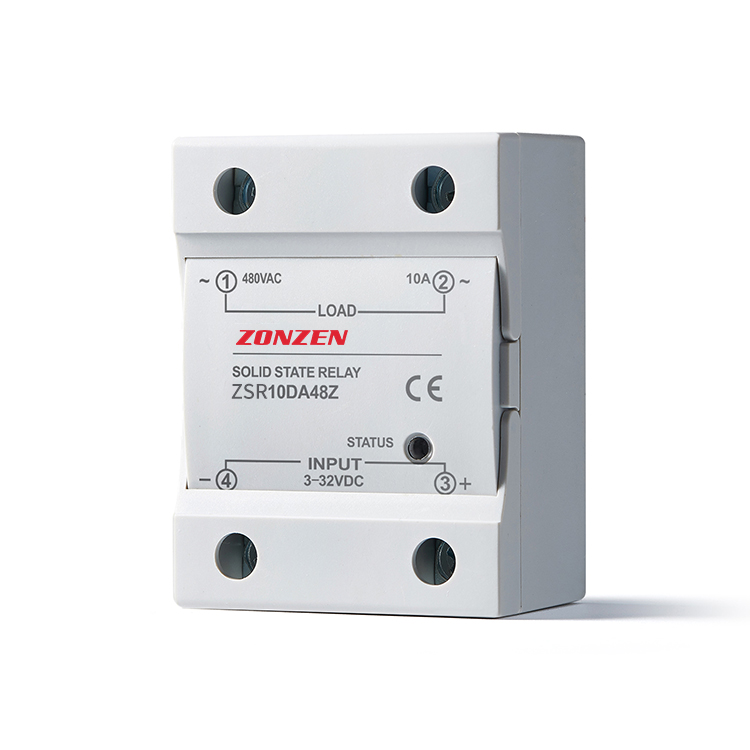

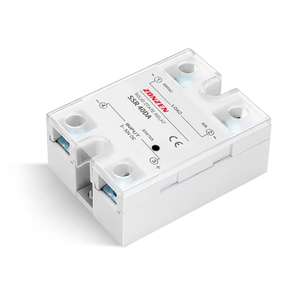

ZSE series single phase solid state relay SSR DC to AC or AC to AC 10Amps ~ 120Amps

▪ Photoelectric isolation between control loop and load loop
▪ Zero-crossing output or random turn-on can be selected
▪ International Standardized Installation Dimensions
▪ LED indicates working status
▪ Built-in RC absorption circuit, strong anti-interference ability
▪ Epoxy resin potting, strong anti-corrosion and anti-explosion ability
▪ DC 3-32VDC or AC 90~280VAC input control
Quantity:
  • ZSE
  • ZONZEN

Product Description


ZSE series is a single phase solid state relay, Triac or SCR output, widely used in various industrial applications, and can be used for resistive, inductive or capacitive loads. The control voltage is 3-32VDC or 90-280VAC, load voltage is 280VAC, 480VAC, and load current range from 10 to 120A.

Features
1. Flip design with cover protection
2. Integral fixed gasket
3. SMT double panel full patch process
4. Strong anti-interference ability
5. Accurate control
6. Excellent thermal conductivity
7. Strong insulation characteristics
8. Mult-layer sealing design, waterproof, dustproof and salt fog resistance, can be used in harsh environment


Ordering options

ZSE40DA28Z

1. ZSE: Single phase solid state relay
2. Load current: 10: 10Amps, 25: 25Amps, 40: 40Amps, 60: 60Amps, 80: 80Amps, 100: 100Amps, 120: 120Amps
3. Control voltage: D: 3~32VDC or A: 90~280VAC
4. Output voltage: A28: 24~280VAC, A48: 48~480VAC
5. Switching mode: Z: Zero cross turn-on, R: Radom turn-on


Product Selection

Control voltage

Load voltage Rated operational current
10Amps 25Amps 40Amps 60Amps 80Amps 100Amps 120Amps
3 to 32 Vdc 280 VAC "Z" ZSE10DA28Z ZSE25DA28Z ZSE40DA28Z ZSE60DA28Z ZSE80DA28Z ZSE100DA28Z ZSE120DA28Z
3 to 32 Vdc 280 VAC "R" ZSE10DA28R ZSE25DA28R ZSE40DA28R ZSE60DA28R ZSE80DA28R ZSE100DA28R ZSE120DA28R
90 to 280Vac 280 VAC "Z" ZSE10AA28Z ZSE25AA28Z ZSE40AA28Z ZSE60AA28Z ZSE80AA28Z ZSE100AA28Z ZSE120AA28Z
90 to 280Vac 280 VAC "R" ZSE10AA28R ZSE25AA28R ZSE40AA28R ZSE60AA28R ZSE80AA28R ZSE100AA28R ZSE120AA28R
3 to 32 Vdc 480 VAC "Z" ZSE10DA48Z ZSE25DA48Z ZSE40DA48Z ZSE60DA48Z ZSE80DA48Z ZSE100DA48Z ZSE120DA48Z
3 to 32 Vdc 480 VAC "R" ZSE10DA48R ZSE25DA48R ZSE40DA48R ZSE60DA48R ZSE80DA48R ZSE100DA48R ZSE120DA48R
90 to 280Vac 480 VAC "Z" ZSE10AA48Z ZSE25AA48Z ZSE40AA48Z ZSE60AA48Z ZSE80AA48Z ZSE100AA48Z ZSE120AA48Z
90 to 280Vac 480 VAC "R" ZSE10AA48R ZSE25AA48R ZSE40AA48R ZSE60AA48R ZSE80AA48R ZSE100AA48R ZSE120AA48R

Connection Diagram

Connection Diagram

Dimensions

Dimensions
