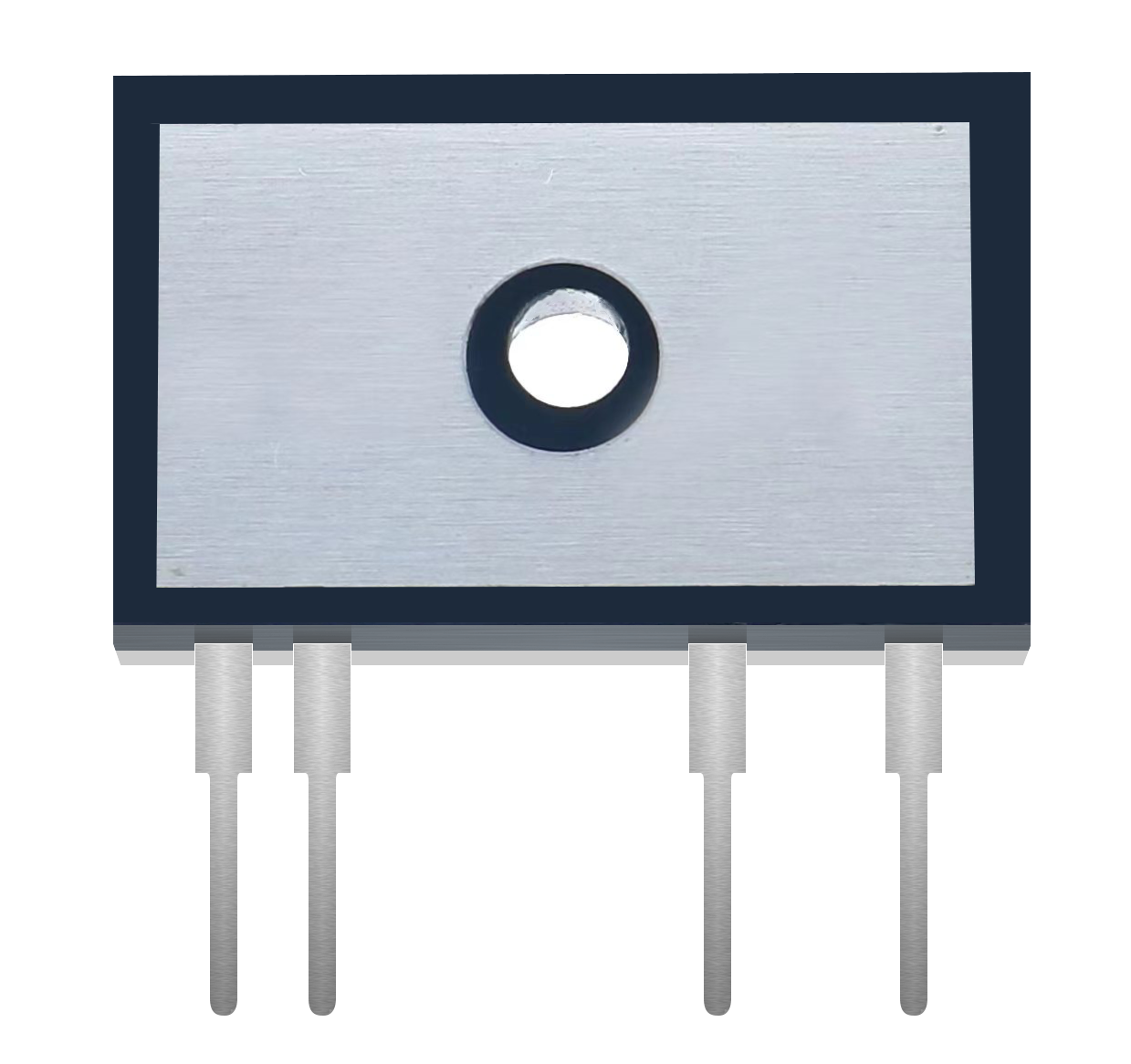

ZSA series PCB mounted single phase solid state relay DC to AC 5A

▪ 5A @24~280VAC
▪ RIAC output for economical type loads
▪ Zero voltage turn-on outputs
▪ DC control
▪ High reliability plastic process
Quantity:
  • ZSA
  • ZONZEN

Product Description


ZSA series is PCB mounted solid state relay. Load current is 5A, including zero cross switching control. Control voltage  is 3~32VDC. Highinrush current capbility, suitable for important industrial applicaions such as electromagnetic valve, light controlling of stage, electric motor revolution and counter revolution, heater, medical care equipment, elevator etc.

Ordering options

2

1. ZSA: Single phase solid state relay
2. Load current: 05: 5Amps
3. Control voltage: D: 3~32VDC
4. Output voltage: A28: 24~280VAC
5. Switching mode: Z: Zero cross turn-on


Product Parameters(Packaged into modules, unless otherwise specified, T case=25℃)

Model no.  ZSA05DA28Z
General specifications:
Dielectric Strength ( input / output / backplane ) (50/60Hz) (V) 2000VDC(1min)
Minimum Insulation Resistance (@ 500VDC) (MΩ) 1000
Maximum Capacitance, Input / Output (pF) 10
Operating temperature range ( ℃ ) -40 ℃ ~80 ℃
Storage temperature range ( ℃ ) -40 ℃ ~125 ℃
Weight ( Typical ) (g) About 3.8g
Humidity reference IEC60068-2-78 93% non-condensing
MTBF ( Mean Time Between Failures ) at 40 ℃ ambient temperature 11,641,553 hours ( 1,328 years )
MTBF ( Mean Time Between Failures ) at 60 ℃ ambient temperature 7,210,376 hours (823 years )
Input specifications:
Operating voltage (47-440Hz) ( V RSM ) 24-280VAC
Transient Voltage ( V PK ) 800
Maximum off-state leakage current @ rated voltage (mA) 1
Minimum off-state rise rate @ maximum rated voltage (V/μs) 500
Maximum load current (A) 5
Minimum load current (mA) 150
Maximum cycle surge current (50/60Hz) (A) 200
Maximum On-State Voltage Drop @ Rated Current ( V RMS ) 1.5
Maximum I⊃2;t (50/60Hz) (A⊃2; sec) 200
Minimum power factor ( maximum load ) 0.5
Output specifications:
Control current range (mA) ≤7
Minimum turn-on voltage (V) 1.13
Guaranteed Shutdown Voltage (V) 1
Typical Input Current (mA) 5
Maximum input current (mA) 7
Maximum opening time (ms) 1/2 cycle
Maximum off time (ms) 1/2 cycle

Connection Diagram

2056x611



diagram


Thermal Derating Curve

Thermal
