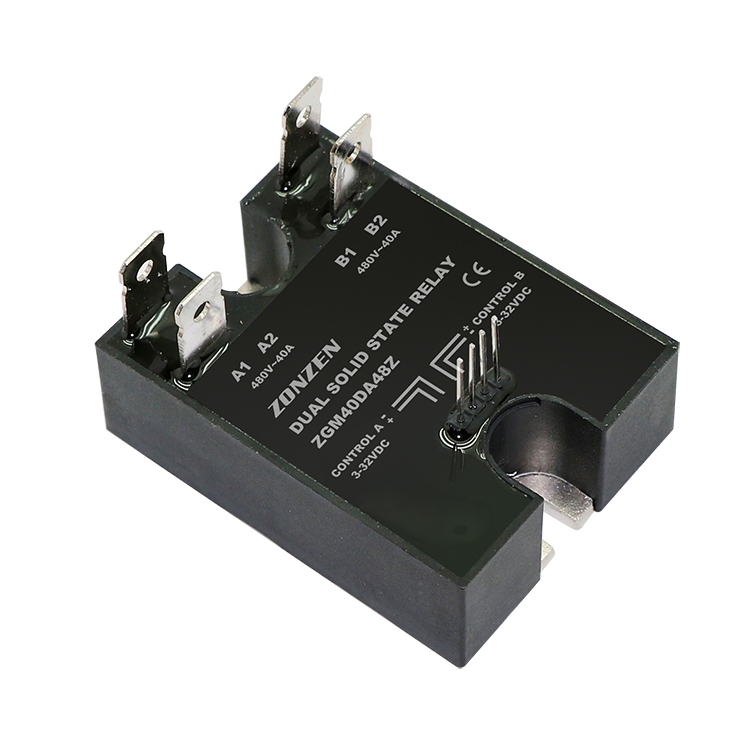

ZGM series dual solid state relay SSR 10Amps ~ 60Amps

▪ Rated operational current 10+10 to 60+60 Amps
▪ Rated operational voltage 280V
▪ Input voltage range 3 to 32Vdc
▪ 2500 Vrms optical isolation. (Input/output
▪ Both "Zero voltage" & phase controllable "Random Switching" versions
Quantity:
  • ZGM
  • ZONZEN

Product Description


ZGM series Solid State Relays are Dual AC relays,Triac or SCR Output. The Triac version of the zero switching relay is an inexpensive solution for resistive loads. The zero switching relay switches on when the AC sine voltage just crosses zero,and switches off when the current crosses zero. The SCR Output is Dual SCR Power Hybrid technology provides highly efficient thermal management for greatly increased cyclic life.

Ordering options

型号

1. ZGM: dual solid state relay
2. Load current: 10: 10Amps, 15: 15Amps, 25: 25Amps, 40: 40Amps, 60: 60Amps
3. Control voltage: D: 3~32VDC
4. Output voltage: A28: 24~280VAC, A48: 48~480VAC
5. Switching mode: Z: Zero cross turn-on, R: Random turn-on


Product Selection

Control voltage

Load voltage Rated operational current
10Amps 25Amps 40Amps 60Amps
3 to 32 Vdc 280 VAC "Z" ZGM10DA28Z ZGM25DA28Z ZGM40DA28Z ZGM60DA28Z
3 to 32 Vdc 280 VAC "R" ZGM10DA28R ZGM25DA28R ZGM40DA28R ZGM60DA28R
3 to 32 Vdc 480 VAC "Z" ZGM10DA48Z ZGM25DA48Z ZGM40DA48Z ZGM60DA48Z
3 to 32 Vdc 480 VAC "R" ZGM10DA48R ZGM25DA48R ZGM40DA48R ZGM60DA48R

Connection Diagram

Dimensions
