ANSI Color Coded K Type Coiled Cords Thermocouple With Molded Mini Plug

Quantity:



Inquiry Add to Basket

Model:
ZZ-CCP-K
Brand:
ZONZEN
Code:
9025900090

Product Description

Product Description

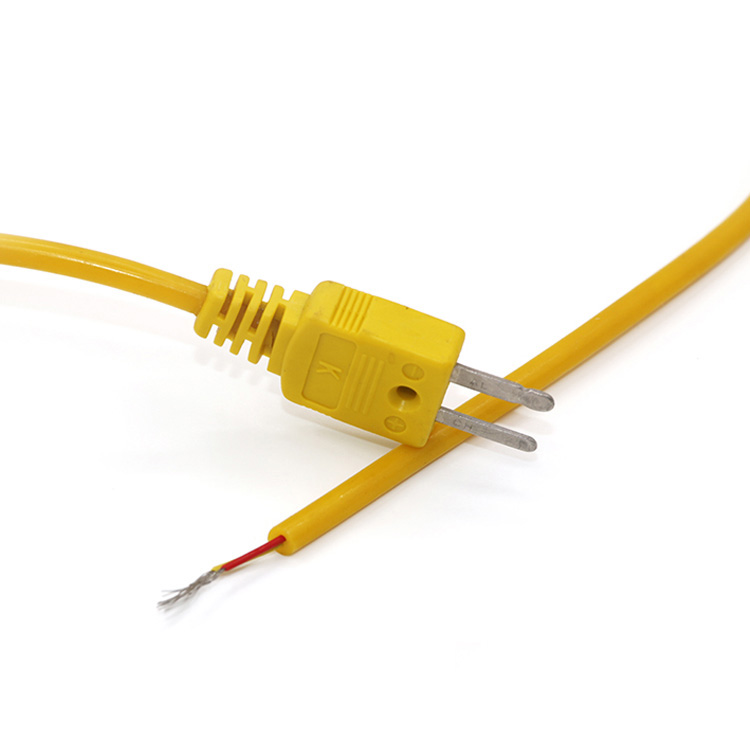

ANSI Color Coded K Type Coiled Cords Thermocouple With Molded Mini Plug

Features:
. Coiled cords thermocouple with Special Limits wire: ±1.1℃
. Construction: 24 AWG or 26 AWG stranded conductors
. Calibration: K, J, T & PT100
. Teflon inner insulation keep cord greater strength and higher operating temperature
. PU outer insulation offers fast and strong snap back, molded plug locks the wires in place and can withstand pull up to 20 lb

Specifications:

Model	ZZ-CCP-K
Calibration	Type K
Color	Yellow
Conductor diameter	2*7/0.16MM
Construction	Round
Insulation	PP-PU-26S 27/0.16MM PVC-PVC-26S 27/0.16MM
Accurancy	Class 2
Junction	Grounded
Max. temperature	120℃
Retracted length	200mm (use wire 1.60m)
Extended length	2.0m
Color code	ANSI
Molded plug	Miniature male connector
Type	Coiled cords thermocouple with molded mini plug
